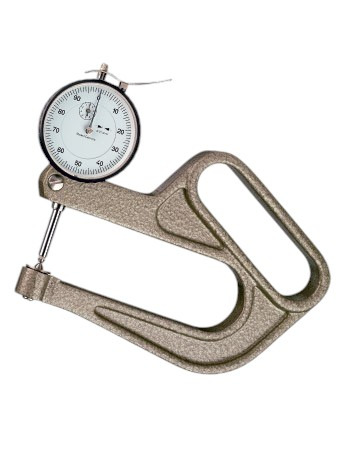

J-100 Thickness Gauge


Made in GermanyThickness gauges are used for measuring the thickness of leather, textile, cardboard, felt, rubber, sheet metal, foils, plywood, plastic parts of all kind, etc.
Depending on the application, the following points are important for selecting the best model:
- Max. resolution required
- Measuring range
- Depth of jaw
- Shape of feelers
- Measuring principle
The aluminium housing is lightweight and rugged. It can be easily zeroed by turning the outer knurled ring of the scale.

The J-100 model is available with 5 different feelers, which can be found below. Measurement by manual pressure by plunger

Features

  • Operating by lifting device - self closing
  • Resolution 0.01 mm

Feeler Shape

To order, please indicate the desired feeler, e.g. J-100-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!



Feeler: A

For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge



Feeler: B
For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard





Feeler: C

For soft leather, cardboard, paper, foils, etc.






Feeler: D

For hard leather, plywood, fiberboard, etc.






Feeler: E

For sheet metal, etc.






Accessories

Table Stand for Thickness Gauge


  • Table stand for thickness gauges
  • Converts the handheld thickness gauges into table models
  • Supported models:
    K50, K100, J50, J100, JA50, F1101/30, JD50, JD100, FD50, FD100

More details


Specifications

Resolution:
0.01 mm
Measuring range:
10 mm
Depth of jaw:
100 mm
Scale diameter:
58 mm
Measuring pressure:
1.0 N
Feeler shape:
a,b,c,d or e
Measurement by spring load:
Operating by lifting device - self closing
Weight, net:
450 g

Buy Now

Products


Product name
Price
Quantity
J-100-A - J-100 with feeler shape A
€ 160,00

J-100-B - J-100 with feeler shape B
€ 160,00

J-100-C - J-100 with feeler shape C
€ 160,00

J-100-D - J-100 with feeler shape D
€ 160,00

J-100-E - J-100 with feeler shape E
€ 160,00



Accessories


Product name
Price
Quantity
Table Stand for Thickness Gauge
€ 65,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
