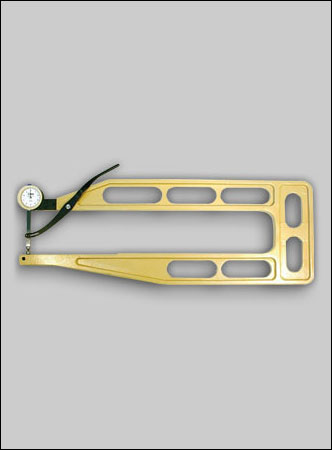

DM-850 Analog Dial Thickness Gauge | DM-850

Made in GermanyThe analog dial thickness gauge DM-850 determines the thickness of various materials, like leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. This thickness gauge is self closing and guarantees high accuracy and resolution. Available in with various depth jaws and feeler shapes.

  • Opening by lever and self-closing
  • Spring force measurement

Available models
Model:Range:Resolution:Jaw depth:
DM-8200 - 25 mm0.1 mm200 mm
DM-820-10 - 50 mm0.1 mm200 mm
DM-8300 - 25 mm0.1 mm300 mm
DM-830-10 - 50 mm0.1 mm300 mm
DM-8350 - 75 mm0.1 mm350 mm
DM-8400 - 100 mm0.1 mm400 mm
DM-8500 - 25 mm0.1 mm500 mm
DM-850-10 - 50 mm0.1 mm500 mm
DM-8650 - 25 mm0.1 mm650 mm
DM-865-10 - 50 mm0.1 mm650 mm

Available feelers
When ordering the DM-850, please indicate your desired feeler, for example "DM-850-B" for the gauge with feeler "B". Only your desired feeler shape is included.

Resolution:0.1 mm
Measuring range:25 mm
Depth of jaw:500 mm
Measuring pressure:2 N
Measuring principle:Self closing
Feeler shape:A/B/C/D/E/F/G/H/I/M
Weight, net (gross):1600 g (1650 g)
