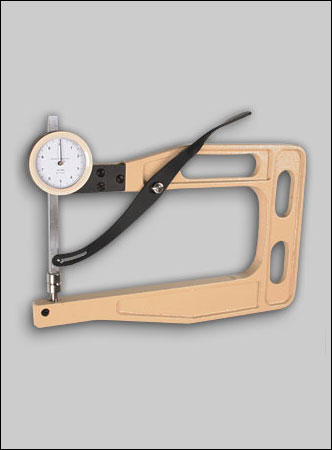

The analog dial thickness gauge DM-820-1 determines the thickness of various materials, like leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. The DM-820-1 thickness gauge is self closing and guarantees high accuracy and resolution.When ordering the DM-820-1, please indicate your desired feeler, for example "DM-820-1-B" for the gauge with feeler "B". Only your desired feeler shape is included.
| Model: | Range: | Resolution: | Jaw depth: |
|---|---|---|---|
| DM-820 | 0 - 25 mm | 0.1 mm | 200 mm |
| DM-820-1 | 0 - 50 mm | 0.1 mm | 200 mm |
| DM-830 | 0 - 25 mm | 0.1 mm | 300 mm |
| DM-830-1 | 0 - 50 mm | 0.1 mm | 300 mm |
| DM-835 | 0 - 75 mm | 0.1 mm | 350 mm |
| DM-840 | 0 - 100 mm | 0.1 mm | 400 mm |
| DM-850 | 0 - 25 mm | 0.1 mm | 500 mm |
| DM-850-1 | 0 - 50 mm | 0.1 mm | 500 mm |
| DM-865 | 0 - 25 mm | 0.1 mm | 650 mm |
| DM-865-1 | 0 - 50 mm | 0.1 mm | 650 mm |
| Resolution: | 0.1 mm |
| Measuring range: | 50 mm |
| Depth of jaw: | 200 mm |
| Measuring pressure: | 2 N |
| Measuring principle: | Self closing |
| Feeler Shape: | A/B/C/D/E/F/G/H/I/M |
| Weight, net (gross): | 700 g (750 g) |
