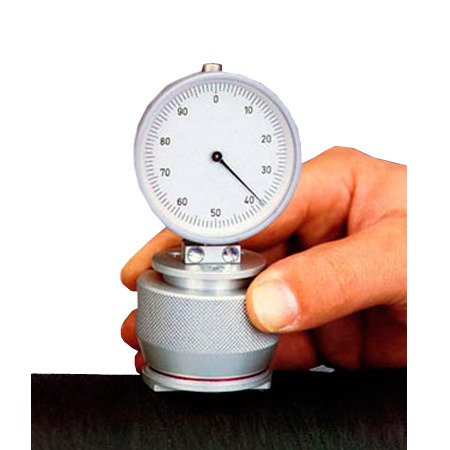

HP Textile Yarn Package Hardness Tester


Made in GermanyThe HP models accurately measure the winding density of textile bobbins, beams, spools, spindles, cones, quills, dye packages, rolls, etc.


Features

  • Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators
  • Supplied in a foam-fitted carrying case.
  • Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line.
  • < 15" Yarn Package Diameter, use "regular" models

    > 15" Yarn Package Diameter, use "F" models (i.e. HP-5F)

Ordering Guide

Model
Number
Indentor
Ball Size
Typical
Application
HP-2.5 2.5 mm Closely wound synthetic, hard finish fibers and filaments.
HP-2.5F 2.5 mm Same as HP2.5, except with flat base for large yarn packages over 15" (380 mm) in diameter.
HP-5 5.0 mm Average yarns, threads, fibers, etc., wound with moderate winding density.
HP-5F 5.0 mm Same as HP5, except with flat base for large yarn packages over 15" (380 mm) in diameter.
HP-10 10.0 mm Loosely wound spools of natural or synthetic yarns and fibers, bulky yarns.
HP-10F 10.0 mm Same as HP10, except with flat base for large yarn packages over 15" (380 MM) in diameter.

Complete Kit

The HP series durometer is supplied as a complete kit with:
  • Durometer
  • User Manual
  • Foam-fitted carrying case.
A calibration certificate is optional.

Related Products

PTS-HP Durometer Test Stand


  • Mechanical lever-operated test stand for use when precise positioning is required on the test sample (i.e. o-ring, etc.).
  • Operation is as simple as rotating lever until shell on durometer reaches red line.

More details

Cic-Duro Durometer Calibration


  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details


Dimensions

Dimensions Textile Test Instruments HP Textile


Specifications

Indenter:
Cone 35°, 1.3 mm Ø
Depth of indentation:
0 - 2.5 mm
Test pressure:
approx. 12.5 N
Measuring spring force:
0.55 - 8.065 N
Display range:
0 - 100 Scale
Scale diameter:
56 mm
Weight, net (gross):
approx. 300 g (500 g)
Dimensions:
50 x 50 x 110 mm (L x W x H)

Buy Now

Products


Product name
Price
Quantity
HP-2.5 Yarn Package Durometer, ball diameter 2.5 mm, Curved Working Face
€ 375,00

HP-2.5F Yarn Package Durometer, ball diameter 2.5 mm, Flat Working Face
€ 375,00

HP-5 Yarn Package Durometer, ball diameter 5 mm, Curved Working Face
€ 375,00

HP-5F Yarn Package Durometer, ball diameter 5 mm, Flat Working Face
€ 375,00

HP-10 Yarn Package Durometer, ball diameter 10 mm, Curved Working Face
€ 375,00

HP-10F Yarn Package Durometer, ball diameter 10 mm, Flat Working Face
€ 375,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request

Buy Now

Accessories


Product name
Price
Quantity
HP-NGC New Gauge Certificate
€ 89,00

PTS-HP - PTS Durometer Test Stand
€ 525,00

Memory Pointer for HP Durometer
€ 49,50

HP-TB - HP-TP Textile Durometer Test Block With Curved Working Face
€ 75,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
