TMT-425 Digital Textile Moisture Meter

USB-port for data transfer and connection to the electrode holder

Battery compartment

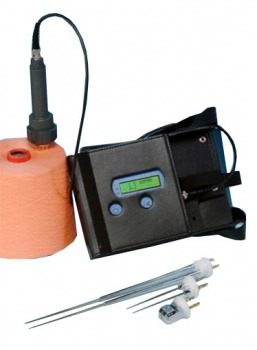

TMT-425 Digital Textile Moisture Meter

The new digital textile moisture meter TMT-425 is the next generation of textile moisture meters. He determines the moisture content of textiles, natural materials, synthetics and yarn. The water content of textiles and yarns influences the elasticity and tensile strength directly. Thanks to innovative sensor technology the humidimeter TMT-425 determines the water content of textiles and yarn during the production process within seconds.

This textile moisture tester has all textile curves stored inside and does not require any lookup tables. Just select the appropriate moisture curve and start measuring. By this, maximum accuracy is guaranteed.

Measuring Range: 0.2 to 26.0% water content (dependening on the material)

Available with optional USB output

Price from € 1.025,00

Order now

Wide measuring range of 0.2% to 26% moisture content (dependening on the material)
Many stored curves for determining humidity in textile, natural and synthetic fabrics and yarns.
Automatically calculates average measurement values
Automatic temperature compensation
Memory Enables quality control and documentation on location
Menu languages: German, English, French, Italian, Spanish and Russian
No conversion tables needed!

The TMT-425 Textile Moisture Meter will be delivered as a complete set, including:

TMT-425 Textile Moisture Meter
Connecting Cable TMT-425
Electrode Holder 204
Electrode 205
Electrode 207
Batteries
Carrying Case

The TMT-425-USB Textile Moisture Meter will be delivered as a complete set, including:

TMT-425 Textile Moisture Meter
USB output for data transfer
Software and USB cable
Connecting Cable TMT-425
Electrode Holder 204
Electrode 205
Electrode 207
Batteries
Carrying Case

*A Calibration Certification is optionally available.

Calibration Curves

The TMT-425 is calibrated to the following textile types:

Material	Water content
Wool	12% - 25,8%
Cotton	1,5% - 13,1%
Viscose	4,1% - 25,2%
Flax yarn	5,4% - 15,3%
Jute yarn	7,4% - 24,2%
Hemp yarn	5,9% - 17,5%
Polyamide	1,5% - 6,5%
Polyacrylic	0,2% - 2,8%
Polyester	0,7% - 4,0%
Acetate	3,4% - 13,4%
70% polyester / 30% viscose	0,8% - 9,3%
65% polyester / 35% viscose	1,7% - 9,9%
55% polyester / 45% viscose	1% - 11,7%
50% polyester / 50% viscose	2,6% - 12,4%
70% polysester / 30% wool	2,5% - 7,9%
55% polyester / 45% wool	2% - 13%
80% polyester / 20% flax yarn	0,6% - 5,2%
67% polyester / 22% cotton	2,6% - 10%
50% polyester / 50% cotton	2% - 11%
40% polyester / 60% cotton	1,3% - 10,5%
50% polyester / 50% polyacrylic	0,1% - 1,5%
70% polyacrylic / 30% wool	2,9% - 9,1%
70% polyacrylic / 30% cotton	1,9% - 6,4%
67% polyacrylic / 33% cotton	1,2% - 6,4%
60% acrylic / 40% wool	3,8% - 11,7%
40% acrylic / 60% wool	4,3% - 15,2%
70% wool / 30% viscose	6,4% - 24,4%
50% cotton / 50% polynosic	4% - 16,3%
40% cotton / 60% flax yarn	4% - 16%
80% viscose / 20% wool	4,7% - 23,5%

LogMemorizer Software

Measuring Range	0.2% to 26% moisture content
Resolution	0.1%
Measuring Technique	Electrical Resistance
Menu Languages	English, German, French, Italian, Spanish en Russian
Housing	Meter: Plastic with IP40 classification
Data Recording	10.000 measurements with date, batch & temperature
Display	Grafic LCD display with backlight (128 x 64 pixels)
Temperature	Automatically in °C or °F using a built-in temperature probe
Operating Temperature	0 °C to 40 °C
Storage Temperature	-20 °C to 60 °C
Power Supply	4 x 1,5 Volt AA Alkaline Batterien
Data transfer (only for TMT-425-USB)	Via USB-port (supplied with USB cable and software)
Dimensions	740 x 65 x 40 mm
Weight	450 gr. including batteries
Warranty	2 years
Calibration Certificate	*A Calibration Certification is optionally available.

Products

Item	Product	Price	Quantity	Action
134018	TMT-425 Digital Textile Moisture Tester	€ 1.025,00
134020	TMT-425-USB Digital Textile Moisture Tester	€ 1.310,00

Accessories

Item	Product	Price
138202	CIC-MOISTURE-NEW GAUGE Calibration Report- TMT-425	€ 58,00
138198	TMT-425 - Universal Electrode Holder	€ 65,00
138197	TMT-425-CABLE-NEW - Connection Cable for new Probe Holder	€ 25,00
132506	TEM-205 - Needle Electrode 25mm	€ 62,14
133395	TEM-206 - Needle Electrode 45mm	€ 62,14
132507	TEM-207 - Needle Electrode 100mm	€ 62,14
137569	TEM-208 - Needle Electrode 17mm	€ 62,14
133388	TEM-209 - Stab Electrode 325mm	€ 128,41
132649	TEM-209-BSM Stabbing electrode for pressed bales	€ 142,22
133252	TEM-210 - Knife electrode 110mm	€ 99,41
130384	TEM-211 Roller Electrode	€ 84,24
133389	TEM-212 - Flow Electrode	€ 84,24
132848	TEM-213 - Surface electrode for textiles and fabrics	€ 63,52
134730	CP-425-KIT Calibration kit for the TMT-425 / TMT-425 USB	€ 149,00
132022	Calibration Certificate - Factory calibration certificate protocol for material moisture meters	€ 136,00
139547	Li-Ion Rechargeable AA Batteries - 4 pcs (with USB to USB-C cable)	€ 25,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
