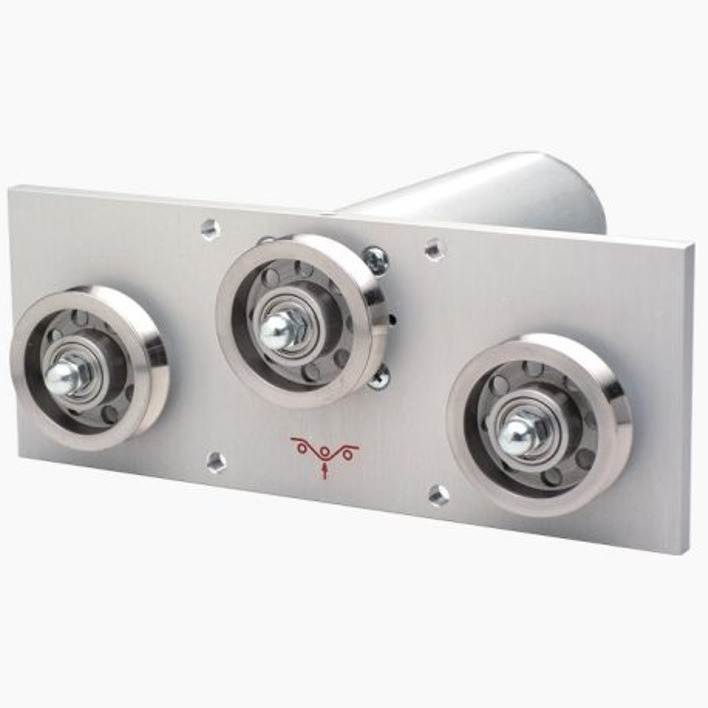

TSH Tension Sensor TSH


Made in GermanyThe TSH Stationary electronic tension sensor for flexible material as wires, thin ropes and cables up to 15 mm Ø, as well as flat material up to 10 mm width.
It comes in 6 tension ranges from 0 - 1000 cN up to 0 - 50.00 daN.

Large, hardened guide rollers for minimized material deflection
Versatile tension sensor for quick and easy mounting

The TSH Tension sensor has an integrated measuring amplifier and high accuracy of 1 % Full Scale.

Ball-bearing mounted guide rollers:
– V-grooved (for material with max. 4 mm Ø)
– U-grooved (for material with 3 up to 15 mm Ø)
– Tape grooved (for material with max. width of 10 mm)

Various output signals are available:
– analog: 0 – 1 V (standard), 0 – 10 V (optional)
– current: 4 – 20 mA (optional)
– analog DMS: mV/V (optional)




Features
    Standard Features
    • Tension sensor TSH with rugged aluminum housing
    • Required power supply +15…24 V DC (regulated)
    • Certificate of Compliance with the order 2.1 according EN 10204 is included
    • Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report
    Special Features
    • Tension sensor TSH with integrated measuring amplifier and high accuracy 1 % FS
    • Ball-bearing mounted guide rollers,
      – V-grooved (for material with max. 4 mm Ø)
      – U-grooved (for material with 3 up to 15 mm Ø) – tape grooved (for material with max. width of 10 mm)
    • Various output signals are available:
      – analog: 0 – 1 V (standard), 0 – 10 V (optional)
      – current: 4 – 20 mA (optional)
      – analog DMS: mV/V (optional)
    • Easy installation, even afterwards, on existing machines
    • Easy calibration to customized material by operator – zero and gain calibration is required
    • Measuring principle – load cell with high quality strain gauge bridge
    • Tension sensor TSH with mechanical overload protection

    Complete Kit
    • Tension sensor TSH with transport packaging
    • Operating instruction in German and English (as requested)
    • Certificate of Compliance with the order 2.1 according EN 10204 free of charge


    Specifications

    Available models
    Model Tension Range* Measuring Head Width* SCHMIDT Calibration Material**
    TSH-1000 0 – 1000 cN 150 mm PA: 0.30 mm Ø
    TSH-2000 0 – 2000 cN 150 mm PA: 0.50 mm Ø
    TSH-5000 0 – 5000 cN 200 mm PA: 0.80 mm Ø
    TSH-10K 0 – 10 dAN 200 mm PA: 1.00 mm Ø
    TSH-20K 0 – 50 daN 250 mm PA: 1.50 mm Ø
    TSH-50K 0 – 50 daN 250 mm steel rope 1.50 mm Ø (7x7x0.20)
    Other tension ranges and measuring head widths available on request. Other measuring units available, such as g or kg.
    * Outer distance between outside guide rollers or outside dimensions of front plate
    ** Suitable for 95 % of applications PA = Polyamide Monofilament


    Calibration to customized material:
    If process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape, special calibration using customer supplied samples is recommended. For this purpose a material sample of about 5 m should be supplied.

    Guide Rollers
    Order-code Line Speed vmax. … m/min Roller Material
    Standard 4000 Hardened steel (max. Ø 4 mm)
    Code R1 4000 Hard chrome-plated steel (Ø 3 – 9 mm)
    Code R4 1000 Hardened steel steel (Ø 8 – 11 mm)
    for model TSH-50K and higher
    Code R5 1000 Hardened steel steel (Ø 12 – 15 mm)
    for model TSH-50K and higher
    Code B6 2000 Hardened steel, width 6 mm
    Code B10 2000 Hardened steel, width 10 mm

    Output Signal

    Standard

    Output signal: 0 – 1 V DC


    Code A2

    Output signal: 0 – 10 V DC


    Code A3

    Output signal: 4 – 20 mA DC


    Code A10

    Output signal: mV/V
    For sensors without amplifier
    incl. firmly connected cable with open ends, 2 m long


    How to order
    To order tension sensor TSH:
    Please indicate the complete item number.:
    Model with tension range Code guide Rollers (if not standard) Code output signal (if not standard) Complete item No.
    TSH-10K + R1 + A2 = TSH-10K-R1-A2

    Accessories (optional)
    E10061 - Diode Plug with Bayonet Cap Diode Plug
    Diode Plug suitable for sensors of TS series,
    cable outlet 3.5 – 6 mm
    Order number: E10061

    EK0603, EK0605 and EK0610 - Connecting Cable with 2 diode plugs
    Connecting cable with 2 diode plugs, for analog output and voltage signal.
    For connecting the TS sensor to the display unit SCD-1.
    Order number: EK0603, Length 3 m
    Order number: EK0605, Length 5 m
    Order number: EK0610, Length 10 m


    EK0612, EK0614 and EK0615 - Connecting Cable with 1 diode plug and open ends

    Connecting cable with 1 diode plug and open ends, for analog output and current signal.
    For connecting sensors of TS series to the display unit SC-PM.
    Order number: EK0612, Length 3 m
    Order number: EK0614, Length 5 m
    Order number: EK0615, Length 10 m

    Other cable length available on request!



    Dimensions
    Dimensions-TSH
