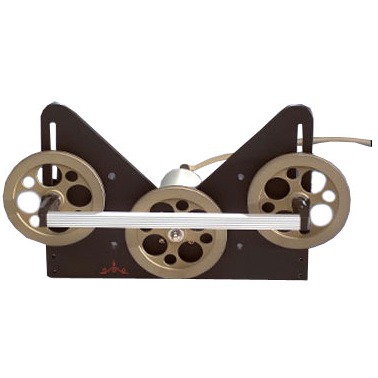

TF Optic Fiber Tension Sensor


Made in Germany6 Tension Ranges
0–100 g up to 0–5.00 Kg

Large 70 mm aluminum rollers minimize bending of material which might damage or break the fragile filament.

The outer rollers are mounted on a movable plate to minimize contact when measurements are not being made.

Tension ranges of 10Kg and higher are available without moveable outer rollers.

Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.

Features
  • 70mm V-grooved rollers are rated for speeds up to 5000 m/min
  • Specify TE-CABLE-CC 5 ft. connecting cable (optional, longer lengths are available upon request)
  • Frequency response of 100 Hz
  • 0-1 V DC output, proportional to tension (0-10 V DC optional)
  • Precision strain gauge sensing insures highest accuracy
  • Optional rollers are available for a wide variety of material profiles
  • Surface mount electronics provide long-term reliability

Tension Ranges
ModelRanges
TF-100 0-100 g
TF-200 0-200 g
TF-500 0-500 g
TF-1K 0-1000 g
TF-2K 0-2000 g
TF-5K 0-5.00 Kg

Dimensions
Dimensions Tension Sensors TF


Related Products

TD-1-TE Tension Indicator


  • User-set High & Low Alarm Limits with relays
  • TD-1 provides regulated +5 V DC for SR sensors
  • 4-20 mA and 0-10 VDC analog output for recording and control purpose

More details

TD-1-TE Tension Indicator

Specifications
Accuracy
± 1.5% FS or better
Sensor Excitation
12 - 18 VDC, 21mA
Middle Roller Deflection
0.5 mm (maximum)
Sensor Output
0-1 V DC (standard)
0-10 V DC (optional)
proportional to tension
Overload Protection
150% FS
Housing Material
Aluminum
Spacing of Outer Rollers
190 mm
Roller Diameter (Root)
70 mm
Roller Material
Hard-Anodized Aluminum
Maximum Linear Speed
5000 m/min
5000 m/min
40 to 105° F (5-40° C)
Frequency Response
100 Hz
