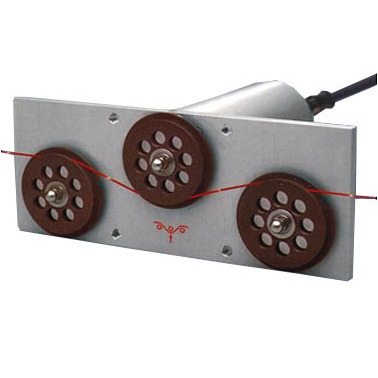

TE-22 Low Inertia Tension Sensor For Fragile Filaments

Call us for more information
+31 (0)53 8200245
Request Information / Quotation
Show similar products

TE-22 Low Inertia Tension Sensor For Fragile Filaments


Made in Germany5 Tension Ranges
0-50 g up to 0-1000 g
TE-xx-22-PL (with Delrin Plastic Rollers)
TE-xx-22-AL (with Hardcoated Aluminum Rollers)

Lightweight 32mm diameter rollers minimize the deflection of the material path for fragile filaments or very low tension applications.

A built-in amplifier conditions the strain gauge signal, providing a 0–1 VDC output, minimizing the chance for signal interference.

Other important features include user-accessible calibration adjustment pots and gold-plated contacts on the connector.

Plastic Delrin rollers can be supplied instead of the standard Hardcaoted Aluminum rollers when extra low weight is needed or when the material dictates an alternative roller material.

Features
  • Lightweight 32mm diameter rollers are offered in Delrin Plastic (specify TE-xx-22-PL) or Harcoated Aluminum (specify TE-xx-22-AL)
  • Precision strain gauge sensing for highest accuracy and repeatability
  • Frequency response of 100 Hz
  • 0-1 V DC output, proportional to tension (0-10 V DC optional)
  • Surface mount electronics provide long-term reliability
  • Optional 10ft. connecting cable, TE-CABLE-CN is recommended

Tension Ranges
Model Ranges
TE-50-22 0-50 g
TE-100-22 0-100 g
TE-200-22 0-200 g
TE-500-22 0-500 g
TE-1K-22 0-1000 g
Note: Please specify Hardcoated Aluminum (AL) or Delrin Plastic (PL) Rollers.

Dimensions
Dimensions TE-22


Related Products

TD-1-TE Tension Indicator


  • User-set High & Low Alarm Limits with relays
  • TD-1 provides regulated +5 V DC for SR sensors
  • 4-20 mA and 0-10 VDC analog output for recording and control purpose

More details

TD-1-TE Tension Indicator

Specifications
Accuracy ± 1.5% FS or better
Sensor Excitation 12 - 18 VDC, 21mA
Middle Roller Deflection 0.5 mm (maximum)
Sensor Output 0-1 V DC (standard)
0-10 V DC (optional)
proportional to tension
Overload Protection 150% FS
Housing Material Aluminum
Spacing of Outer Rollers See Dimensional Drawing
Roller Diameter (Root) 32 mm
Roller Material Plastic (standard)
Aluminum (optional)
Maximum Linear Speed 4000 m/min
5000 m/min 40 to 105° F (5-40° C)
Frequency Response 100 Hz
