SK 224 FM, Tension Sensors
SK 224 FM, Tension Sensors
SK 224 FM, Tension Sensors

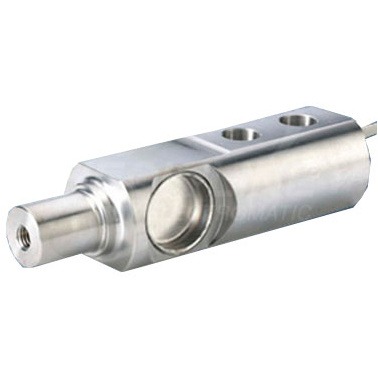

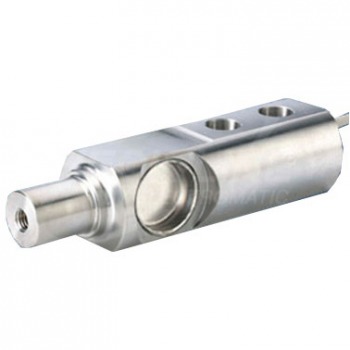

SK 224 FM High Capacity, Radial Force Online Tension Sensor


Made in Germany3 Ranges
500 KG (1100 LBS/5000N)
1000 KG (2200 LBS/10000N)
1500 KG (3300 LBS/15000N)


Features

  • Designed as a single-roller system -uses an existing reversing point for tension measurement
  • Rugged stainless steel housing is environmentally sealed
  • Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available
  • System of protection IP67 - waterproof
  • Overload protection up to 800%
  • Resolution of 0.1% and better

Related Products

TS621 Strain Gauge Amplifier


  • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
  • 0-10VDC analog output

More details

DPM502 Digital Tension Indicator


  • Selectable “damping function” reduces display fluctuations
  • 24V DC power supply with galvanic isolation

More details

MU621 Tension Indicator/Amplifier Console


  • For strain gauge sensors
  • 1 to 4 measuring channels

More details


Dimensions

Dimensions Tension Sensors SK 224 FM


Tension & Force Definitions


Specifications

Measuring Ranges
500 KG (1100 LBS/5000N)
1000 KG (2200 LBS/10000N)
1500 KG (3300 LBS/15000N)
Measuring Principle
Strain Gauge
Accuracy
±0.1% Full Scale or better
Sensor Excitation
10 VDC (12 VDC, max.)
Sensor Output
1.5 mV/V
Input Resistance
1000 Ohms
Output Resistance
1000 Ohms
Overload Protection
400 - 800%
Deflection
0.07mm (max.)
Housing Material
Stainless Steel
Environmental Protection
IP67 (Water-Proof)
Cable Type
4.5 mm diameter shielded cable with bare leads
Cable Length
10 ft. (3 meter), longer lengths available. Inquire
Operating Temperature
15 to 122° F (-10 to 50° C)
Fequency Responce
5 msec (200 Hz)
Zero Adjustment
±45%
Weight
1100g
