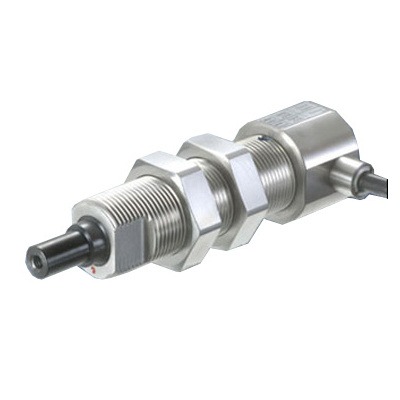

RFSE On-Line Tension Sensor With Built-In Amplifier


Made in GermanyThe new Checkline Model RFSE Tension Sensors measure the running line tensions of yarn, wires, optic fibers, cables, tapes/bands, wraps/webs, foils and similar process materials.

Its unique strain-gauge design delivers excellent measurement precision and stability as well as providing maximum overload protection. They are used in a variety of low and high-range applications, such as measuring 1 or 2 grams on fine denier yarns/fibers to applications measuring wire/cable up to 500 Kg.

Built-in amplifier provides a 0-10 VDC or 4-20 mA output. This sensor requires an unregulated 24 VDC power source. Requires a "zero" adjustment only.

Features
  • Integrated measurement amplifier for compact mounting onto the application
  • Resolution of 0.1% and better
  • Rugged stainless steel housing is environmentally sealed
  • Threaded housing with lock-nuts permits easy mounting and simple alignment
  • Overload protection up to 800%
  • Wide variety of precision, ball-bearing mounted guide rollers are available
  • Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available
  • Custom sensor designs can be developed to meet specific applications requirements. Inquire.

Tension Ranges

RFS-100 0-100 g (0.00-0.22 lbs)
RFS-200 0-200 g (0.00-0.44 lbs)
RFS-500 0-500 g (0.00-1.10 lbs)
RFS-1K 0-1 Kg (0.00-2.20 lbs)
RFS-2K 0-2 Kg (0.00-4.40 lbs)
RFS-5K 0-5 Kg (0.00-11.0 lbs)
RFS-10K 0-10 Kg (0.00-22.0 lbs)
RFS-20K 0-20 Kg (0.00-44.0lbs)
RFS-50K 0-50 Kg (0.00-110 lbs)
RFS-100K 0-100 Kg (0.00-220.0 lbs)

Tension & Force Definitions


Related Products

HCC-Easy Data Transfer & Analysis Program For Honigmann Tension Sensors


  • Real time display of measured values graphically and digitally, indicating the actual value in tension units
  • Export data in ASCII format

More details

HCC-Easy Data Transfer & Analysis Program For Honigmann Tension Sensors

DPM502 Digital Tension Indicator


  • Selectable “damping function” reduces display fluctuations
  • 24V DC power supply with galvanic isolation

More details

DPM502 Digital Tension Indicator

Specifications
Measuring Principle
Strain Gauge
Accuracy
±0.5% Full Scale or better
Sensor Excitation
10 VDC (12 VDC, max.)
Sensor Output
1.5 mV/V
Input Resistance
350 Ohms
Output Resistance
350 Ohms
Overload Protection
400 - 800%
Deflection
0.07mm (max.)
Housing Material
Stainless Steel
Environmental Protection
IP50 (Splash-Proof)
Cable Type
4.5 mm diameter shielded cable with bare leads
Cable Length
10 ft. (3 meter), longer lengths available. Inquire
Operating Temperature
15 to 155° F (-10 to 70° C)
Sensor Excitation
19 - 28 VDC
(24 VDC recommended @ 36 mA)
Sensor Output
0 - 10 VDC (standard)
4 - 20 mA (optional)
Fequency Responce
5 msec (200 Hz)
Zero Adjustment
±45%
Weight
500g
