RFS100, Tension Sensors
RFS100, Tension Sensors

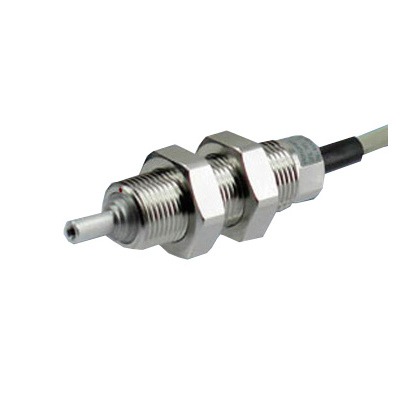

RFS100 Radial Force Measuring Axle


Made in GermanyRFS stands for enduring online precision. The specified and calibrated accuracy remains unchanged throughout the unit’s service life and, across wide ranges, is independent of:
  • the force introduction point, i.e. the sensor is not affected by lever arm action
  • any axial tilt torques which might appear
  • direct axial forces
The functional principle makes for superb sensitivity while at the same time offering enormous performance capabilities. The force acting radially at the bearing journal, along the measurement vector, causes a microscopically small, elastic deformation of the complex load cell. This deformation is registered at an exactly pre-determined position by way of strain gauges and is then evaluated electronically.

The high mechanical stiffness of the load cell enables measurement with virtually no excursion. This tension measurement principle is based on the evaluation of the force applied radially and transferred to the sensor by way of the bearing journal. This force is determined by the reversing geometry and the line tension.

Features

  • Extremely compact and small design - for 16mm mounting hole
  • Overload protection up to 800%
  • No influence of any axial tilt torques or direct axial forces which might appear
  • Robust, stainless steel housing
  • Existing reversing points can be adapted as measurement points
  • Independent of the force introduction point, i.e. the sensor is not affected by lever arm action
  • Centrifugal force will take no affect with optimal alignment in rotating purposes
  • Thought-through concept of housing for simple mounting

Specifications


Related Products

RFS On-Line Tension Sensor


  • Resolution of 0.1% and better
  • Rugged stainless steel housing is environmentally sealed
  • Overload protection up to 800%
  • Custom sensor designs can be developed to meet specific applications requirements. Inquire.
  • Wide variety of precision, ball-bearing mounted guide rollers are available
  • Threaded housing with lock-nuts permits easy mounting and simple alignment
  • Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available

More details

RFSE On-Line Tension Sensor With Built-In Amplifier


  • Integrated measurement amplifier for compact mounting onto the application
  • Resolution of 0.1% and better
  • Rugged stainless steel housing is environmentally sealed
  • Threaded housing with lock-nuts permits easy mounting and simple alignment
  • Overload protection up to 800%
  • Wide variety of precision, ball-bearing mounted guide rollers are available
  • Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available
  • Custom sensor designs can be developed to meet specific applications requirements. Inquire.

More details

TS621 Strain Gauge Amplifier


  • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
  • Galvanic Isolation minimizes the chance for signal interference, including ground faults
  • 0-10VDC analog output
  • Provides accuracy of ±0.1%
  • Operating input power supply of 19-36 VDC, non-regulated
  • Includes excellent overload and reverse-polarity protection
  • Provides a well-regulated power supply of 10 VDC for sensor

More details

DPM502 Digital Tension Indicator


  • Selectable “damping function” reduces display fluctuations
  • Scaling by means of 2 multiturn trimmers (rough / coarse)
  • Easy snap-in installation
  • 24V DC power supply with galvanic isolation

More details

MU621 Tension Indicator/Amplifier Console


  • For strain gauge sensors
  • 1 to 4 measuring channels

More details
