Click on an image for a larger image

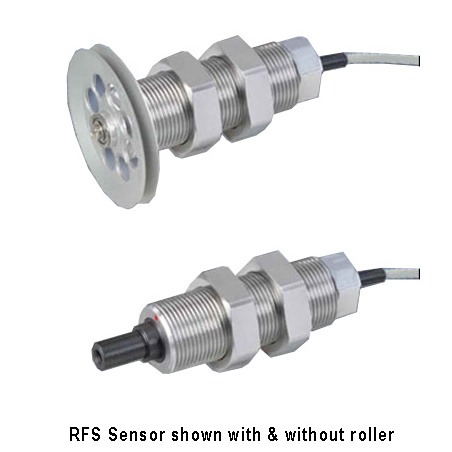

RFS On-Line Tension Sensor

10 Ranges up 500Kg

The new RFS Tension Sensors measure the running line tensions of yarn, wires, optic fibers, cables, tapes/bands, wraps/webs, foils and similar process materials.

Its unique strain-gauge design delivers excellent measurement precision and stability as well as providing maximum overload protection. They are used in a variety of low and high-range applications, such as measuring 1 or 2 grams on fine denier yarns/fibers to applications measuring wire/cable up to 500 Kg.

Features

Resolution of 0.1% and better
Rugged stainless steel housing is environmentally sealed
Overload protection up to 800%
Custom sensor designs can be developed to meet specific applications requirements. Inquire.
Wide variety of precision, ball-bearing mounted guide rollers are available
Threaded housing with lock-nuts permits easy mounting and simple alignment
Supplied with a 10 ft. (3 m) shielded cable. Optional lengths are available

Tension Ranges

Model	Ranges
RFS-100	0-100 N
RFS-200	0-200 N
RFS-500	0-500 N
RFS-1K	0-1000 N
RFS-2K	0-2000 N
RFS-5K	0-5000 N
RFS-10K	0-10 000 N
RFS-20K	0-20 000 N
RFS-50K	0-50 000 N
RFS-100K	0-100 000 N
