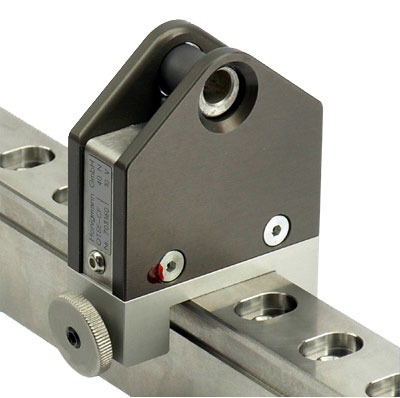

OTSE-CF On-line Tension Sensor


Made in GermanyThe sensor OTSE-CF is designed especially for tension measurement on fiber ribbons and fiber bundles, e.g. Carbon Fiber (CFK).

The compact design and the stackability allow an easy integration into a production line, e.g. behind an unwinding creel.

Any grid spacing and grouping is realizable by customizing the carrier rail.

Features
  • Compact design - only 22 mm wide
  • Very high overload protection
  • Definite product guidance and gentle surface coating
  • Exchangeable sliding sleeve
  • Robust aluminium housing
  • Measures precisely and long-term stable
  • Geometry and surface of the sliding sleeve is optimized for carbon fiber bundles
  • Built-in measuring amplifier
  • Sophisticated system for easy installation on a carrier rail
  • Optional sealing gas connection
