Available in 6 load ranges
0 - 5 g through 0 - 50 Kg

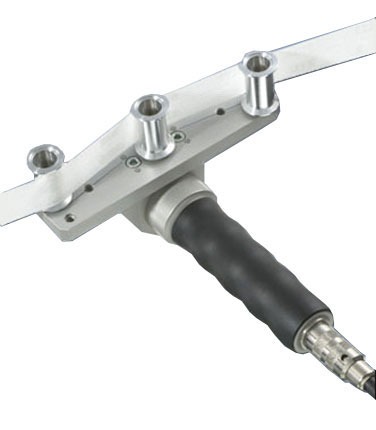

The angled design utilized in this series gives users a general-purpose sensor with a narrow profile. This makes for convenient measurement operations even where space is restricted - typical when measuring woven tapes and web threads.
The range of applications for this series of sensors covers extensive areas in research, quality control and production in the wire, cable, film and textile industries and the like.
For measuring monofilament textiles, copper- and steel wires, healds, carbon fibres up to 2.0 mm Ø, as well as tapes, belts, thread groups, films, foils, magnetic tapes, etc.
Customized guide rollers optional
Easy handling even when inserting into running products in cramped quarters
Effective overload protection for uninterrupted availibility
Measuring path: 100, 120 or 150mm
Smallest possible angle of contact (10°) means minimum impact by:
- inherent stiffness
- acceleration torques
- inertial forces due to deflection
3 ball-bearing aluminium rollers with V-groove, root Ø 16mm
Excellent long-term stability and high precision for reproducible measuring results
Diameter, stiffness, weight and speed of the product being measured have no influence on measuring accuracy
D-485 Digital Tension Indicator with Built-In Amplifier
Automatic zero setting
"Peak" function retains maximum reading on display
