Checkline Europe

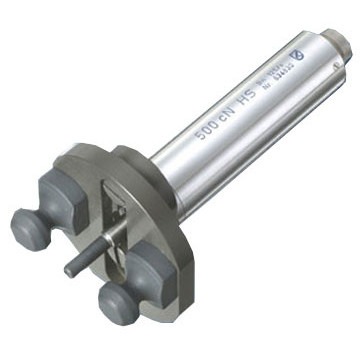

125-S-HDI Hand-Held Tension Sensor


Made in GermanyDesigned for measurement of high denier yarns for operating tensions up to 5Kg and for filament speeds up to 3000 m/min and higher.

Outer Rollers are mounted on a spring-loaded bracket which greatly simplifies acquisition of the yarn without stopping the speed. Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins.


Features

  • Ideal for high-strength, high denier yarns and fibers running at linear speeds up to 5000 m/min
  • Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins
  • Small angle of contact minimizes twisting interference
  • Outer Rollers are mounted on a spring-loaded bracket which greatly simplifies acquisition of the yarn without stopping the speed
  • Lightweight and compact permits use in applications where access space is limited

Tension Ranges


125/S-500-HDI 500 g/cN
125/S-1K-HDI 1000 g/cN
125/S-2K-HDI 2000 g/cN
125/S-3K-HDI 3000 g/cN
125/S-4K-HDI 4000 g/cN
125/S-5K-HDI 5000 g/cN

Material Threading Animation


Related Products

D-485 Digital Tension Indicator with Built-In Amplifier


  • Automatic zero setting
  • "Peak" function retains maximum reading on display
  • User-set averaging between 0.3 and 1.5 second
  • Rugged plastic housing
  • Low battery indicator
  • Built-in calibration adjustment potentiometer
  • "Hold" function retains last reading on display
  • High-contrast, easy-to-read 13 mm LCD display
  • Operates on a single 9V battery

More details

125-12 Limited Access Tension Meter


  • Small angle of contact minimizes twisting interference
  • Easy to load thread
  • Ceramic thread guides provide a surface that is gentle on the threads, making for low friction and even wear at high running speeds

More details


Specifications

Measuring Principle
Capacitive Sensing
Accuracy
±1.0% or better
Material Deflection
15 Degrees
Roller Material
Plasma Coated Steel
Dimensions
100mm x 25mm diameter
Weight
100 grams
Calibration Certificate
Optional
