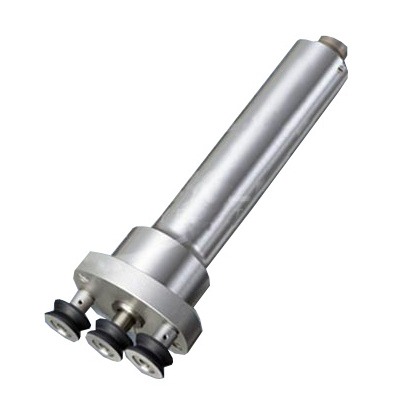

125-14 Precision Tension Meter


Made in Germany6 Ranges
0 - 5 Kg up to 0 - 40 Kg

The Series 125-14 Tension Meters are for use on monofilament textiles, industrial yarns, carbon fiber, copper and steel wires up to 0.5mm Ø, woven tapes, belts and magnetic tapes. They are offered with ceramic thread guides or precision ball bearing mounted rollers.

High overload protection and optional waterproof design (optional) makes this model ideal for all laboratory & production.


Features
  • Excellent long-term stability for highly reproducible measuring results
  • 3 ball-bearing aluminum rollers with V-groove, root diameter 16mm
  • Smallest possible deflection angle (15°) for minimum interaction with the product being measured
  • Interchangeable guide components
