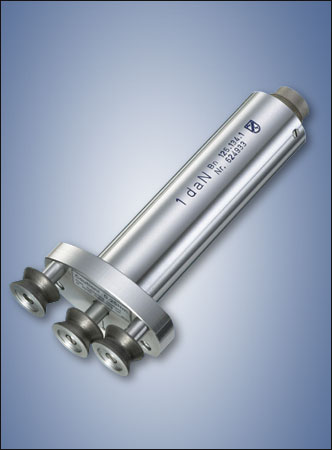

125-13 Precision Tension Meter


Made in GermanyPrecision Tension Meter for measuring tension on textiles, wires, cables, tire cords, magnetic tapes, carbon fibers etc.

8 Ranges
0 - 100g up to 0 - 4,000g


Features
  • Small wrap angle (15°) for minimum interaction with the product being measured
  • Excellent long-term stability for highly reproducible measuring results
  • Interchangeable guide components
  • For measurement of monofilament textiles, industrial yarns, carbon fiber, copper and steel wires up to 0.5mm Ø, woven tapes, belts, magnetic tapes
  • 3 ball-bearing aluminium rollers with V-groove, root diameter 11mm with easy-running bearings

FFA
Shiftable thread guiding device FFA for 125-13
  • comfortable, easy threading into the running process
  • for smooth threading, gentle to the material
