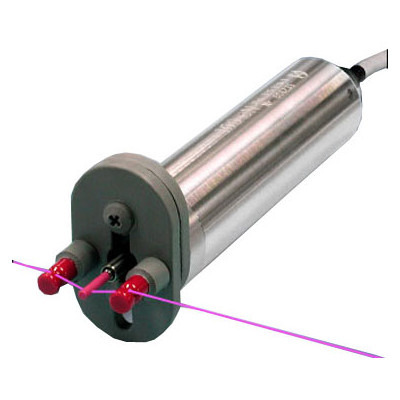

125-12 Limited Access Tension Meter


Made in Germany7 Ranges
0 - 10g up to 0 - 500g

The Series 125-12 Tension Meters are extremely compact for use on low tension applications where access space is limited. They are offered with ceramic thread guides or precision ball bearing mounted rollers.

High overload protection and optional waterproof design makes this model ideal for all laboratory & production.

Two kinds of ceramic thread guides with a gentle surface and a low coefficient of friction are supplied to each sensor for various measuring tasks:

On the left:

  • structurered surface (orange peel), especially for flat yarn

On the right:

  • polished surface, e.g. for texturized yarn. The optional available, shiftable thread guiding device FFA offers comfortable and smooth threading into the running process.


Features
  • Small angle of contact minimizes twisting interference
  • Easy to load thread
  • Ceramic thread guides provide a surface that is gentle on the threads, making for low friction and even wear at high running speeds

Tension Ranges

125-12-10 0-10g
125-12-20 0-20g
125-12-30 0-30g
125-12-50 0-50g
125-12-100 0-100g
125-12-200 0-200g
125-12-300 0-300g
125-12-500 0-500g

Material Threading Animation

Related Products

D-485 Digital Tension Indicator with Built-In Amplifier


  • Automatic zero setting
  • "Peak" function retains maximum reading on display

More details

D-485 Digital Tension Indicator with Built-In Amplifier

125-S-HDI Hand-Held Tension Sensor


  • Ideal for high-strength, high denier yarns and fibers running at linear speeds up to 5000 m/min
  • Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins
  • Small angle of contact minimizes twisting interference

More details

125-S-HDI Hand-Held Tension Sensor

Dimensions
Dimensions 125-12


Specifications
Measuring PrincipleCapacitive Sensing
Tension Ranges0-10g, 0-20g, 0-30g, 0-50g, 0-100g, 0-200g, 0-300g, 0-500g
Accuracy±1.0% or better
Material Deflection15 Degrees
Thread GuidesCeramic Pins (Standard)
Ball-bearing mounted rollers (optional)
Dimensions100mm x 25mm diameter
Weight100 grams
OptionsOuter thread guide shifting plate
Ball-bearing mounted rollers
Splash-proof protection
Special thread guide design
Calibration CertificateOptional
