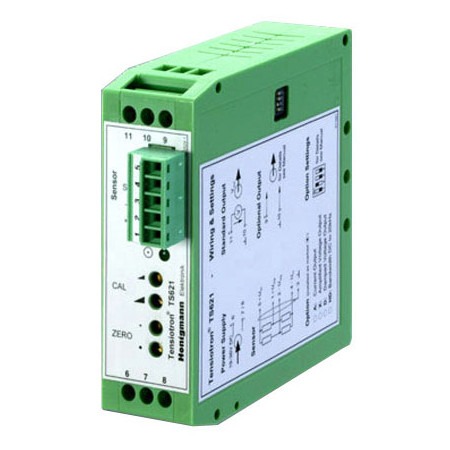

TS621 Strain Gauge Amplifier


Made in GermanyThe TS621 Electronic Strain Gauge Amplifier provides outstanding signal conditioning capabilities suitable for use with most strain-gauge-based sensors. It is supplied in a DIN-Rail housing for convenient snap-in installation.

TS621 performance features include galvanic isolation, regulated power supply for the sensor, coarse and fine calibration adjustments, screw terminals for power and analog outputs, with a removable terminal block for the sensor input.


Features
  • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
  • Galvanic Isolation minimizes the chance for signal interference, including ground faults
  • 0-10VDC analog output
  • Provides accuracy of ±0.1%
  • Operating input power supply of 19-36 VDC, non-regulated
  • Includes excellent overload and reverse-polarity protection
  • Provides a well-regulated power supply of 10 VDC for sensor

Options
In standard version the measurement amplifier offers a voltage output. The TS 621 can be extended with one additional output.
Option D 2nd voltage output 0 to ±10V
• selectable cut-off frequency
• 0.5 - 5 - 10 - 20 Hz
• setting by DIP-switches
click to view animation

Tension signal with a dynamic part (frequency approx. 3Hz)
Cutoff Frequency = 5Hz
Option X 2nd voltage output 0 to ±10V
• Additional amplification, selectable 2-, 3-, 4- or 5-times
• filtered (cut-off-frequency 25Hz)
• setting by DIP-switches
Option A Additional current output
• bipolar 0 to ±20mA
• unipolar 0 to +20mA
• unipolar 4 to +20mA
• setting by DIP-switches
Option TS621-AD Current output 0/4-20mA, filtered
• bipolar 0 to ±20mA
• unipolar 0 to +20mA
• unipolar 4 to +20mA
• cut-off frequency 0,5 / 5 / 10 / 20 Hz
• setting by DIP-switches

Related Products

RFS On-Line Tension Sensor


  • Resolution of 0.1% and better
  • Rugged stainless steel housing is environmentally sealed
  • Overload protection up to 800%

More details

RFS On-Line Tension Sensor

DPM502 Digital Tension Indicator


  • Selectable “damping function” reduces display fluctuations
  • 24V DC power supply with galvanic isolation

More details

DPM502 Digital Tension Indicator

HCC-Easy Data Transfer & Analysis Program For Honigmann Tension Sensors


  • Real time display of measured values graphically and digitally, indicating the actual value in tension units
  • Export data in ASCII format

More details

HCC-Easy Data Transfer & Analysis Program For Honigmann Tension Sensors

MU621 Tension Indicator/Amplifier Console


  • For strain gauge sensors
  • 1 to 4 measuring channels

More details

MU621 Tension Indicator/Amplifier Console

Specifications
Sensor Types
Strain Gauge, full bridge
Impedance Range
Minimum 150 Ohms
Overall Accuracy
0.1% (any portion of the range)
Power Source Required
19 to 36 VDC (24 VDC, typical)
Optional: 9 to 18 VDC (12 VDC, typical)
Power Supply to Sensor
10 VDC, regulated (±5 VDC referenced to ground)
Calibration Range
38 to 580%
Output from TS621
0-10 VDC (standard)
Optional Outputs
Current (option A), 0-20/4-20 mA, user set
Amplified voltage (option X),2X, 3X, 4X, 5X
Damped voltage (option D) at 4 seconds
Isolation between I/O
Galvanic Isolation using integrated DC-DC converter between input power & output signals
Power Consumption
100 mA @ 24 VDC
Operating Temperature
0 to 60 °C (32 to 140 °F)
Connector Types
Screw Terminals
Dimensions
3.1" (H) x 1" (W) x 3.7" (D) (80 x 25 x 95mm)
Weight
4 ounces (100 grams)
Mounting Style
DIN-Rail Snap-In Installation (DIN-rail not provided)
