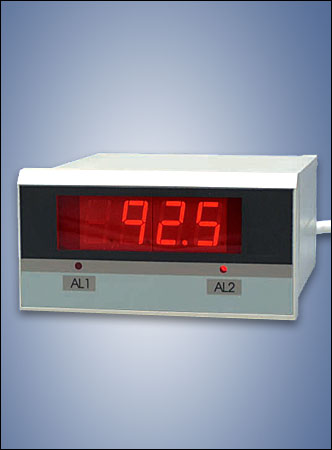

TD-1-TS Tension Indicator


Made in the USAAccurately displays tension values calibrated in any unit of measure on a bright LED display, designed for flush panel mounting.

Calibration and alarm settings are adjusted using screw poten-tiometers located behind the removable front panel.



Features
  • Designed for use with the TS621 Strain Gauge Amplifier or the RFSE Tension Sensor
  • Provides 24 VDC power for TS621or RFSE
  • User-set High & Low Alarm Limits with relays
  • 4-20 mA and 0-10 VDC analog output (user set)

Related Products

RFS On-Line Tension Sensor


  • Resolution of 0.1% and better
  • Rugged stainless steel housing is environmentally sealed
  • Overload protection up to 800%

More details

RFS On-Line Tension Sensor

TS621 Strain Gauge Amplifier


  • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
  • 0-10VDC analog output

More details

TS621 Strain Gauge Amplifier

Specifications
Display Range0- 1999 (calibrated for any units)
Display3 1 /2 - digit Red LED, 14.4mm high
Decimal PointUser-selected via internal jumper
Power Supply24 VDC @ 100mA
Analog Output4-20 mA or 0-10 VDC, user selected
Frequency Response1 Hz (with damping filter)
40 Hz (without damping filter)
Enclosure MaterialHigh-Impact Plastic
Dimensions3.78" W x 1.89" H x 4.04" D
(96 x 48 x 103mm)
Panel Cutout92 x 44mm
Operating Temperature32 to 122° F (0-50° C)
Relay OperationHi-Hi/Hi or Hi-Lo
Relay Rating1 Amp @ 250 VAC/ 30 VDC, normally open
Power Required115/ 230 VAC + 10%, 50/ 60 Hz
