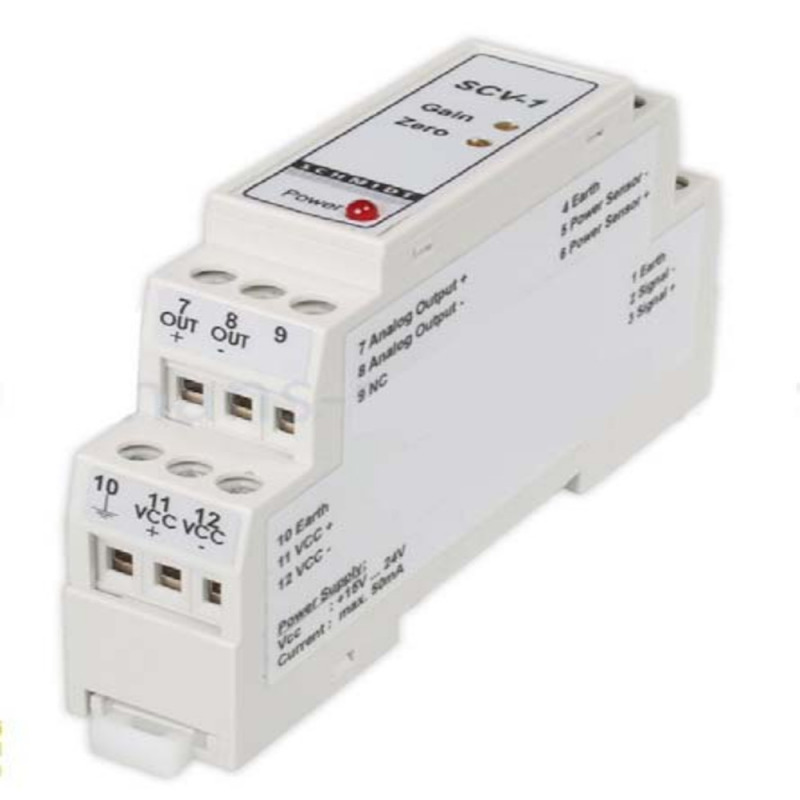

The SCV-1 is a strain gauge amplifier for sensors without integrated amplifier (mV/V output) and suits all sensors of TS2, TSC as well as the sensors of the SF series.
This amplifier has been designed for DIN rail mountrovides and several output signals are at your disposal: Analog: 0 - 1 V DC (standard), Analog: 0 - 10 V DC (option A2) and Current: 4 - 20 mA (option A3).
It further provides ZERO and GAIN adjustment pots for calibration purposes and is CE certified with sensor connected.
The SCV-1 amplifier is delivered in a transport packaging together with the manual in German and English and the certificate of compliance.
|Output signal:||analog: 0 - 1 V DC /R (Last) ≥ 5kΩ analog 0 - 10 V DC (option) 4 - 20 mA instead of 0 - 10 V DC|
|Power supply:||15 - 24 V DC, 50 mA|
|Temperature range:||10 - 45° C|
|Air humidity:||85 % RH, max.|
|Dimensions:||90 x 56 x 18 mm (LxWxH), DIN EN 60715 tophat rail box|
|Weight, net (gross):||Approx. 53 g|
