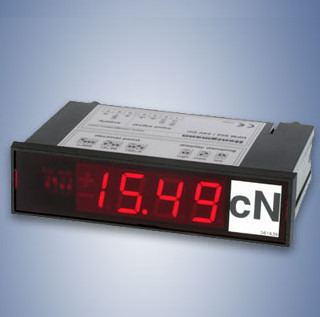

DPM502 Digital Tension Indicator


The DPM502 is designed to connect to the TS621 or TS481 Strain Gauge Amplifier, as well as the RFSE Tension Sensor.

It incorporates built-in calibration adjustments to scale the tension values into display units. The 3 1 /2 LED display has a user-set decimal point and will display values up to 1999. Faceplate is easily removed to make calibration adjustments.


Features
  • Selectable “damping function” reduces display fluctuations
  • Scaling by means of 2 multiturn trimmers (rough / coarse)
  • Easy snap-in installation
  • 24V DC power supply with galvanic isolation

User Controls
User control pots & dip switches are accessed behind display panel.

Related Products

RFS On-Line Tension Sensor


  • Resolution of 0.1% and better
  • Rugged stainless steel housing is environmentally sealed
  • Overload protection up to 800%

More details

RFS On-Line Tension Sensor

TS481 Strain Gauge Measurement Amplifier


  • Galvanic Isolation minimizes the chance for signal interference, including ground faults
  • Provides accuracy of ±0.1%
  • User-enabled "damping function" eliminates tension fluctuations

More details

TS481 Strain Gauge Measurement Amplifier

TS621 Strain Gauge Amplifier


  • Designed for use with a wide range of strain-gauge-based force, load and tension sensors
  • 0-10VDC analog output

More details

TS621 Strain Gauge Amplifier

MU621 Tension Indicator/Amplifier Console


  • For strain gauge sensors
  • 1 to 4 measuring channels

More details

MU621 Tension Indicator/Amplifier Console

Specifications
Display
3 1 /2 - digit LED (1999 max.) 14mm height
Decimal Point
User-Selected
Damping Rate
0.2 to 4 sec.
Display Update Rate
0.5 sec.
Power Required
24 VDC @ 50 mA (approx)
Panel Cutout
92 x 22mm
Weight
3.5 ounces (100 g)
Dimensions
96mm W x 77mm D x 24mm H (3.7" W x 3" D x 1" H)

Dimensions
Dimensions Tension Indicators and Amplifiers DPM502
