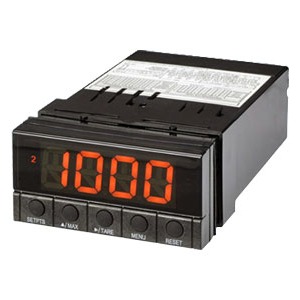

The Digital-Panel-Meter DPM-PCS-02 is a 4-digit meter with a bright, 21mm high LED-display.
It offers good readability even from long distances.
The optional limited value transducer is ideal for the monitoring of tension signals.
Adjustments for scale, decimal point, min-/max-limited values and display colour are done via the front-side pushbuttons.
comfortably adjustable display, in the proper unit of measure
programmable via front-side pushbuttons
adjustable decimal point
display range -1999 to 9999 digit
multi-level programming interlock
limited value transducer MIN / MAX (optional)
programmable display colour: red, green or amber
connection by removable screw terminal plug
supply voltage AC: 230V AC or 115V AC
supply voltage DC: 10 to 32V DC, galvanically isolated
