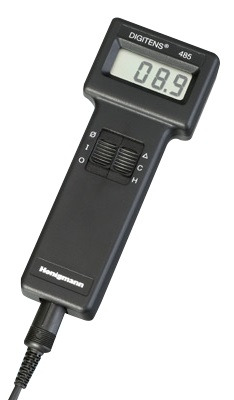

D-485 Digital Tension Indicator with Built-In Amplifier


Made in GermanyThe battery-powered D-485 features a digital display with peak capture, adjustable averaging and automatic zero.

Specify D-485-P for calibration in pounds (lbs.).


Features
  • Automatic zero setting
  • "Peak" function retains maximum reading on display
  • User-set averaging between 0.3 and 1.5 second
  • Rugged plastic housing
  • Low battery indicator
  • Built-in calibration adjustment potentiometer
  • "Hold" function retains last reading on display
  • High-contrast, easy-to-read 13 mm LCD display
  • Operates on a single 9V battery

Specifications
DisplayCD, 13 mm with 3 1/2 digit
FunctionsAutomatic zero setting
Averaging display
Maximum value
AccessoriesSensor connection cable, 2 m long
Dimensions6.7" x 2.6" x 1.6" in (H x W x D)
65 x 40 x 170 mm (H x W x D)
Weight0.2 kg
