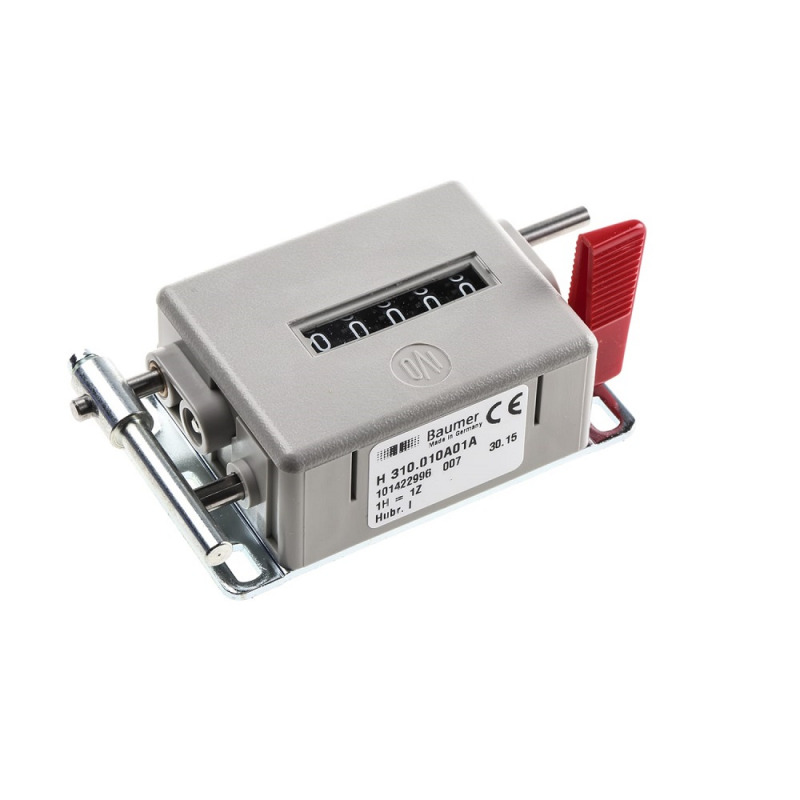

H310 IVO Mechanical Stroke Counter


Made in GermanyCounter available in various models described below.

Features
  • Counting in direction of stroke to be defined,
    adding 1 stroke = 1 digit.
  • Stroke lever adjustable by choice on drive shaft. Stroke lever returns automatically to initial position.
  • Stroke extent min. 38°, max 60°
  • Max. 500 strokes/min

Dimensions
Dimensions Stroke Counters H310


Sense of rotation

Model Selector

Downloads

Specifications
Display:
5-digit, 99 999
Digit size:
Approx. 4.5 mm high, white on black background
Reset:
Reset by pushing the socket lever, mounted on left or right side, at choice
Drive shaft:
Projecting on both sides, Ø 4 mm
Housing material:
Gray plastic
Base plate:
Galvanized steel
Ambient temperature:
0...+60 °C
Weight:
Approx. 130 g
Counting mode:
In direction of stroke to be defined, adding 1 stroke = 1 digit
Stroke extent:
Min. 38°, max. 60°
Stroke lever:
Adjustable at choice on drive shaft. Stroke lever returns automatically to initial position.
Max. speed:
Max. 500 strokes/min.

Buy Now
Products

Product name
Price
Quantity
H310.010A01A IVO Stroke Counter
€ 92,30
H310.010A01B IVO Stroke Counter
€ 92,30
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
