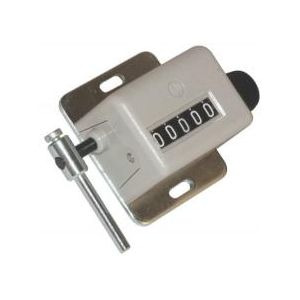

H127 Stroke counter with turn reset


Made in GermanyCounter available in various models described below.

Features
  • Counting in direction of stroke to be defined (adding)
  • Stroke extent: Min. 38°, max. 60°
  • Stroke level adjustable at choice on drive shaft. Stroke lever returns automatically to initial position.
  • Max. 500 strokes/min.

Dimensions
Dimensions Stroke Counters H127


Sense of rotation
Right turn to reset
Away from user I
Right turn to reset
Towards user II
Left turn to reset
Away from user I
Left turn to reset
Towards user II

Model Selector

Downloads

Specifications
Digit size:
Approx. 4.5 mm high, white on black background
Reset:
By turning the fixed knurled knob
Housing material:
Gray plastic
Base plate:
Steel - 2 mm thick, galvanized
Weight:
Approx. 90 g
Display:
5-digit, 99 999
Drive shaft:
Right or left, Ø 4 mm
Counting mode:
In direction of stroke to be defined, adding 1 stroke = 1 digit
Stroke extent:
Min. 38°, max. 60°
Stroke lever:
Adjustable at choice on drive shaft. Stroke lever returns automatically to initial position.
Max. Speed:
Max. 500 strokes/min.

Buy Now
Products

Product name
Price
Quantity
H127.010A01G IVO Stroke Counter
€ 52,70
H127.010A01H IVO Stroke Counter
€ 52,70
H127.020A02H IVO Stroke Counter
€ 52,70
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
If the desired model is not shown in the list of prices, price is on request
