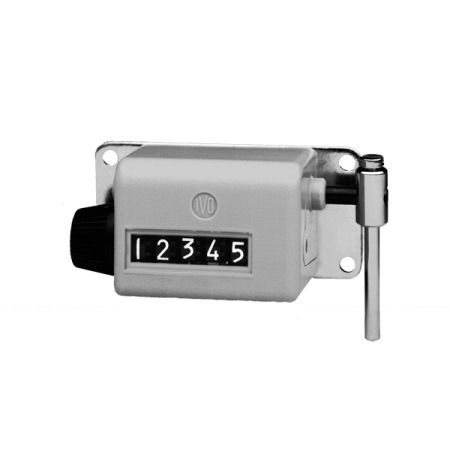

H126 Stroke Counters with Turn Reset

Counter available in various models described below.

Features

Counting in direction of stroke to be defined (adding)
Stroke level adjustable at choice on drive shaft. Stroke lever returns automatically to initial position.
Stroke extent: Min. 38°, max. 60°
Max. 500 strokes/min.

Dimensions

Sense of rotation


Right turn to reset Away from user I	Right turn to reset Towards user II

Left turn to reset Away from user I	Left turn to reset Towards user II

Downloads

Datasheet H126

Specifications

Display:	5-digit, 99 999
Digit size:	Approx. 4.5 mm high, white on black background
Reset:	By turning the fixed knurled knob
Drive shaft:	Right or left, Ø 4 mm
Housing material:	Gray plastic
Base plate:	Steel - 2 mm thick, galvanized
Weight:	Approx. 90 g
Counting mode:	In direction of stroke to be defined, adding 1 stroke = 1 digit
Stroke extent:	Min. 38°, max. 60°
Stroke lever:	Adjustable at choice on drive shaft. Stroke lever returns automatically to initial position.
Max. Speed:	Max. 500 strokes/min.
