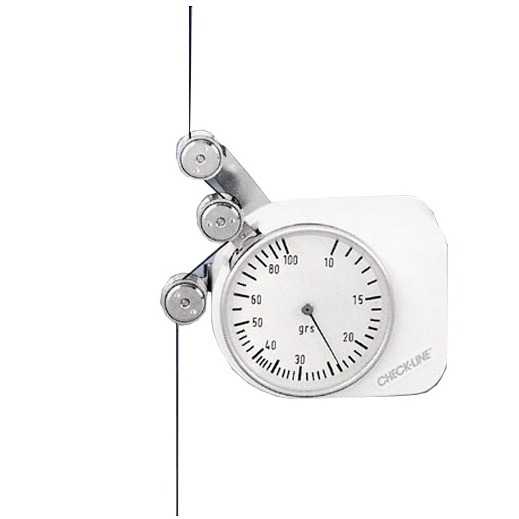

ODT Stationary Tension Meter


Made in GermanyThe ODT Tension Meter accurately measures running line tensions on a wide variety of yarns, fibers, wires, etc. It's designed for fixed mounting for continuous tension measurement.

Threaded mounting holes are provided on the back side and edge of the housing.


Features
  • Easy-to-read analog scale
  • Chromed steel, V-grooved guide rollers for speeds up to 1000 m/min or, optionally, 3000 m/min
  • Magnetic damping minimizes tensions fluctuations
  • Adjustable maximum tension detector can provide a low voltage signal when tensions exceed user-set limit

Dimensions
Dimensions ODT


Tension Ranges
ModelRanges
ODT-10 2 - 10 cN
ODT-20 2 - 20 cN
ODT-30 3 - 30 cN
ODT-50 5 - 50 cN
ODT-100 10 - 100 cN
ODT-200 20 - 200 cN
ODT-300 20 - 300 cN
ODT-500 50 - 500 cN
ODT-1K 50 - 1000 cN

Specifications
Accuracy±1% Full Scale (FS) or ±1 Graduation mark
Scale Diameter 58 mm
Roller MaterialChromed Steel - Standard
Hard-coated aluminum (K) - Optional
Housing MaterialDie-cast aluminum
Weight0.7 pounds (300 g)
Dimensions3.1" x 2.5" x 1.1" (78 x 62 x 27mm)
