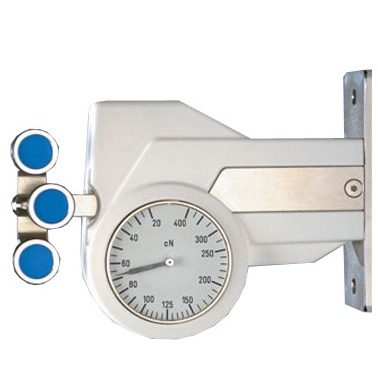

DX2S Stationary Tension Meter


Made in GermanyA precise jeweled movement, choice of ball bearing mounted rollers and rugged cast aluminum housing makes the DX2S ideal for the toughest production floor application.

Built-in mounting holes permit fixed installation for continious in-line use.


Features
  • Fixed mount design for continuous measurement
  • DX2S' hard-coated aluminum, V-grooved rollers are rated for speeds up to 2000 m/min or, optionally, up to 5000 m/min
  • Option adjustable "max" & "min" tension detector contacts can provide a low voltage signal when tension exceed user-set limits
  • Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Tension Ranges
ModelRanges
DX2S-50 10-50 cN
DX2S-120 20-120 cN
DX2S-20 0 20-200 cN
DX2S-40 0 20-400 cN
DX2S-1000 50-1000 cN
DX2S-2000 50-2000 cN
DX2S-5000 400-5000 cN
DX2S-8000 1000-8000 cN
DX2S-10K 2.5-10 daN
DX2S-20K-L 5-20 daN



Dimensions
Dimensions DX2S


Specifications
Accuracy± 1% of full scale or
± 1 graduation mark on scale
Diameter of Scale41 mm
Maximum Speed2000 m/min (standard)
3500 m/min (K)
5000 m/min (HS)
Outer Roller Distance, c:cDX2S-5 to DX2S-EX: 38 mm
DX2S-200 to DX2S-1k: 100 mm
DX2S-2K: 150 mm
DX2S-3K to DX2S-5K: 250 mm
Roller MaterialHard-coated aluminum (standard)
Hardened steel (ST)
Chromed Steel (w)
Ceramic (CE)
Plastic (PL)
Housing MaterialDie-cast aluminum
Dimensions127 x 85 x 45 mm (L x W x H)
