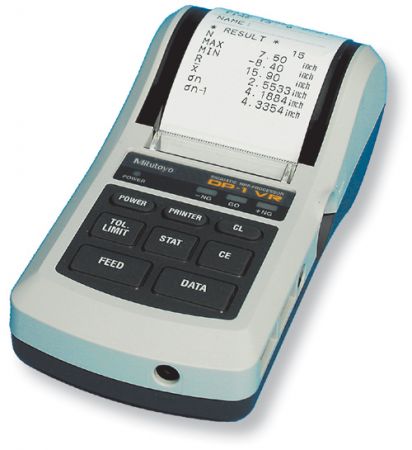

DP - Statistical Printer Statistical Printer


The DP-1VR collects measurements from a force gauge equipped with a Mitutoyo BCD output. It produces a number of charts, histograms and statistical reports.

The DP-1VR can be operated on battery power or with the included AC adapter.

Features
  • Portable operation
  • GO / NO-GO indication
  • Automatic date and time
  • Small size
  • Statistical reports and charts
  • Thermal paper for quiet operation

Specifications
Voltage:
120V
Printing method:
Thermal line printer
Printing dot:
384 dot (8 dot/mm)
Printing speed:
6.5 mm/s (using AC adapter)
Printing paper:
48 m
Printing line:
Approx. 6500 lines for large characters, approx. 12000 lines for normal characters
Processing capacity:
Mode 1/2/3: 9999 data, mode 0: 100000 data
Printing data:
Measurement data, GO/±NG judgment, number of data, maximum/minimum value, range, average, standard deviation, number of defective, fraction defective, process capability index, histogram, D-chart, control chart generation for Xd-bar and control limit data, date and time
Output function:
Output the measuring data (RS232C) or GO/±NG judgment
Input timer:
0.25s, 1s, 5s, 30s, 1min, 30min, 60min
Power:
AC adapter 6V (not interchangeable to DP-1HS) Electric battery: LR6 (alkaline), Ni-Mh (AA size)
Battery life:
10 years (clock battery), 10000 lines (1600mA 1time/5 sec. using the nickel hydrofluoric battery)
Operating temperature:
0°C to 45°C (using AC adapter), 10°C to 45°C (using battery)
Storage temperature:
-10°C to 50°C

Buy Now
Product

Product name
Price
Quantity
DP-1VRE - Mitutoyo SPC statistical processor/printer
€ 744,00

Accessories

Product name
Price
Quantity
09-1047 - Cable, BG/EG/BGI to Mitutoyo
€ 73,00
09-1164 - Serial Output Cable Series 5/4 to Mitutoyo SPC
€ 98,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
