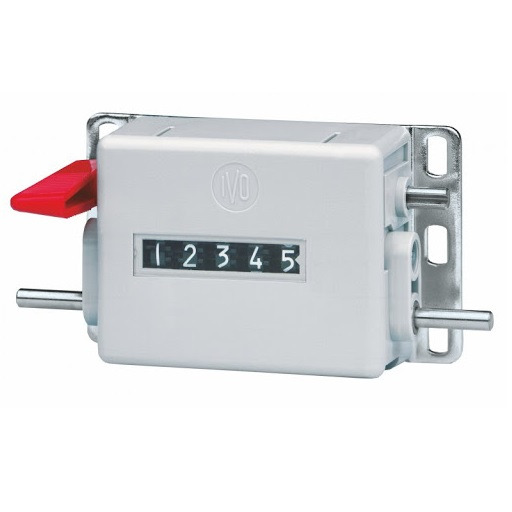

U310 IVO Mechanical Revolution Counter


Made in GermanyCounter available in various models described below.

Features
  • Counting in direction of defined rotation (adding). Substracting in reverse direction.
  • 1 revolution = 1 digit
  • Max. 3000 rev/min

Dimensions
Dimensions-U310


Sense of rotation

Sense of rotation


Downloads

Specifications
Display:5-digit, 99 999
Digit size:Approx. 4.5 mm high, white on black background
Reset:Reset by pushing the socket lever, mounted on left or right side, at choice
Drive shaft:Projecting on both sides, Ø 4 mm
Housing material:Gray plastic
Base plate:Galvanized steel
Ambient temperature:0...+60 °C
Weight:Approx. 130 g
Counting mode:In sense of rotation to be defined, adding. Subtracting in reversed direction.
Max. Speed:Max. 3000 rev./min.

Buy Now
Products

Product
Price
Quantity
130967
U310.010A01A - IVO Mechanical Revolution Counter
€ 181,00
130968
U310.010A01B - IVO Mechanical Revolution Counter
€ 181,00
133265
U310.010A02A - IVO Mechanical Revolution Counter
€ 243,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
