Counter available in various models described below.
(Difference with U126 is the mounting plate)

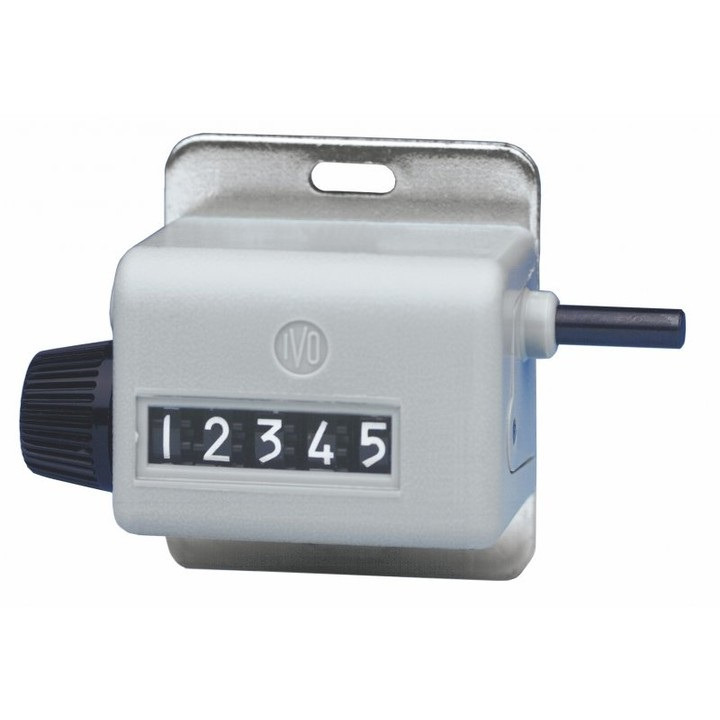

Revolution counter from IVO. This revolution counter can be used in various applications. Turning the revolution counter the opposite way can reset the counter.
|Digit size:||Approx. 4.5 mm high, white on black background|
|Reset:||By turning the fixed knurled knob|
|Housing material:||Gray plastic|
|Base plate:||Steel - 2 mm thick, galvanized|
|Weight:||Approx. 90 g|
|Display:||5-digit, 99 999|
|Drive shaft:||Right or left, Ø 4 mm|
|Counting mode:||In sense of rotation to be defined, adding. Subtracting in reversed direction 1 revolution = 1 digit|
|Max. Speed:||Max. 2000 rev./min.|
|Dimensions W x H x L||40 x 29 x 27.5 mm|
|Dimensions mounting plate||40 x 46 mm|
|Mounting type||Base plate, 2 long mounting holes|
