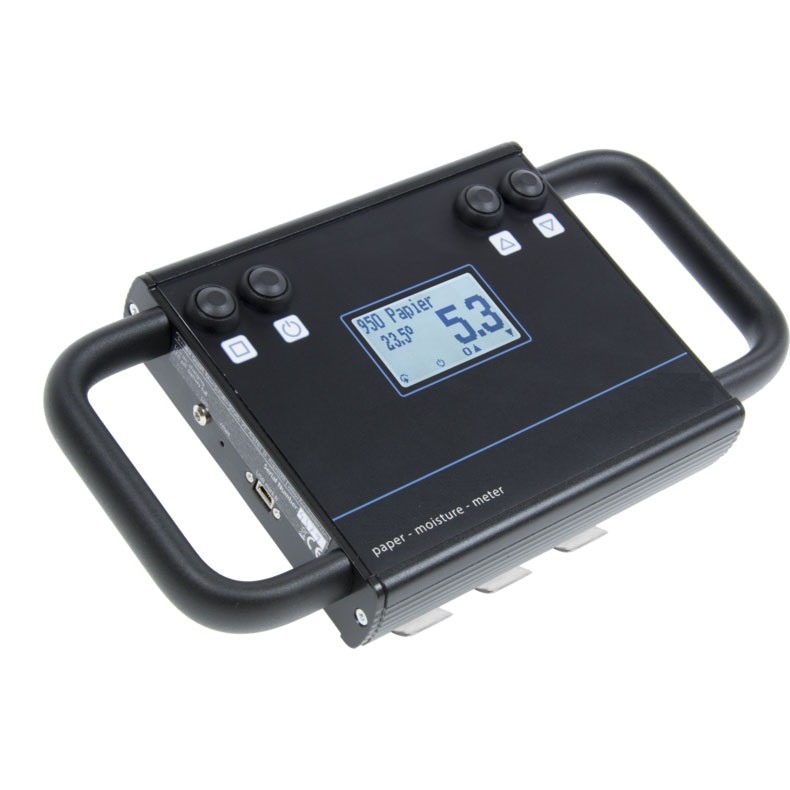

PF5 Paper moisture meter for determination of absolute water content


Measuring range: 1% to 25%

Checkline's PF5 Paper moisture meter for determination of absolute water content at the roll for paper manufacturers, paper processors and paper retailers, with infrared temperature measurement for measurements on warm running rolls as well as for receiving inspection on cool rolls.

The Checkline's PF5 is a specially-designed instrument for accurate measurement of moisture content in running paper. The instrument can also be used to measure paper rolls, cardboard and pulp.

The PF5 is equipped with an infrared temperature sensor capable of measuring material temperature up to 125°C. The instrument automatically compensates moisture levels based on material temperature up to 80°C.

The built-in sensor on the rear-side of the gauge provides a measuring range of up to 25% with a measuring resolution of 0.1%.

A datalogger for up to 10,000 readings is provided for recording purposes and the instrument is equipped with a USB output for data transfer.

PF5 provides for Non-destructive measurement through packaging!


The PF5 offers:
- Infrared paper web temperature measurement
- USB data interface module with software for PC   incl.USB cable
- Rechargeable batteries
- Exact determination of the roll temperature
- Precise measurement values due to temperature compensation based on   non-contact temperature measurement
- Easy evaluation of measuring data on PC and printer
- Optimal documentation of your quality

Measuring procedure:

Switch on the PF5, select the right calibration curve (dependent on the paper density) and press the sensor bars of the instrument against the long side of the roll. The illuminated display immediately shows the measuring value. For an average moisture content reading or to identify sections on the roll that are too moist or dry, simply move the device along the entire length of the roll. The PF5 offers a data memory for up to 10,000 measuring values as well as the possibility to enter additional data such as batch number. Via the USB interface, the measurement values can be transferred to a PC and via LogMemorizer® PC software the data can be archived, exported, processed or printed out.


Features
  • Language support for German, English, French, Italian, Spanish, Portuguese, Czech, Polish, Russian
  • Measuring range 1% to 25% moisture content with resolution of 0,1%
  • Automatic temperature compensation for highest accuracy with temperature measurement in ºC or ºF
  • Supplied with Large, well-lit LCD display with built-in HOLD function
  • Built-in datalogger for 10.000 values
  • USB interface (supplied with data transfer cable & software)

Product types
Product typePaper typeDensity (kg/m³)
300 paperTissue, filter paper300 kg/m³
350 paperTissue, filter paper350 kg/m³
400 paperTissue, filter paper400 kg/m³
450 paperTissue, filter paper450 kg/m³
500 paperLow density cardboard500 kg/m³
550 paperLow density cardboard550 kg/m³
600 paperVery low density paper600 kg/m³
650 paperLow density paper650 kg/m³
700 paperLow density paper700 kg/m³
750 paperCorrugating medium, fluting, Schrenz750 kg/m³
800 paperNewsprint800 kg/m³
850 paperKraft liner, brown850 kg/m³
900 paperKraft liner, white, top; test liner, brown900 kg/m³
950 paperTest liner, white; copying paper950 kg/m³
1000 paper Copying paper, LWC uncoated1000 kg/m³
1050 paper Satin-finish copying paper1050 kg/m³
1100 paperSatin-finish copying paper1100 kg/m³
1200 paperLWC calendered1200 kg/m³
1300 paperBrochure paper1300 kg/m³
1400 paperBrochure paper1400 kg/m³
1500 paperHigh density brochure paper1500 kg/m³
1600 paperVery high density brochure paper 1600 kg/m³

Complete Kit

The PF5 is delivered as a complete kit including:

  • PF5 Moisture Meter
  • Calibration Test Plate
  • Plastic Case With Foam Filling
  • Rechargeable battery
  • User Manual
  • LogMemorizer Software
  • USB Data Cable


Specifications
Measuring Range1% to 25%
Resolution0,1%
Measuring depth50 mm
Minimum material thickness50 mm
Pressure/Forceapprox. 4 kg (To press PF5 on material)
Paper density range300 kg/m³ to 1600 kg/m³
Temperature compensationAutomatic
Operating temperature0 °C to +80 °C
Temperature Resolution0,1°C
Temperature Units°C or °F
Data LoggerAutomatic data log for 10.000 logs with measuring point report
Data Output USB interface (supplied with data transfer cable & software)
Display128x64 illuminated matrix display
Menu languagesGerman, English, French, Italian, Spanish, Portuguese, Czech, Polish, Russian
Device dimensions254 x 138 x 70 mm
Case dimensions450 x 360 x 106 mm
Device weight850 g
Weight of device + case2450 g
IR sensor measurement angle90°
Power supplyLI-Ion 1,800 mAh battery (60 to 100 operating hours)
Battery charging timeUp to 6 h
Current consumption60 mA (incl. display illumination)
Device IP ratingIP 40
Warranty2 years

Buy Now
Product

Product
Price
Quantity
136718
PF5 - Hand-Held Digital Moisture Meter for Paper Rolls
€ 2.179,00

Accessories

Product
Price
Quantity
132022
Calibration Certificate - Factory calibration certificate protocol for humidity meters
€ 141,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
