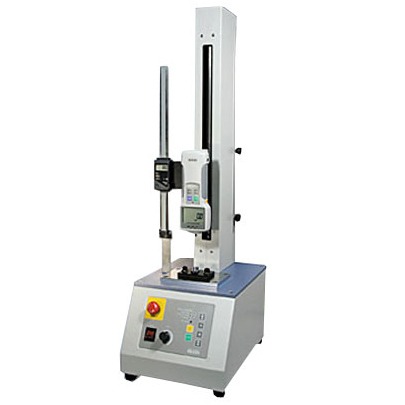

MV-275 Motorized Vertical Test Stand


Capacity: 125 Kg / 275 lbs / 1225 N

The new MV-275 motorized test stands offer advanced force testing. The combination of screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

Speed control, quick return and emergency stop are standard features. A suitable digital distance meter is optionally available.


Features
  • Clearance 16"
  • One stand for both compression (push) and tension (pull) tests
  • Jog, Single Cycle, Continuous Cycle (72 hour max.), Force Control
  • Wide speed range: 0.4 – 9.4 in/min (optional speed ranges available)
  • Optional timer and digital distance meter
  • Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.

Dimensions
Dimensions-MV-275


Speed Configuration
Standard Speed Optional High Speed Optional Low Speed
0.4~9.4"/min 0.7~23"/min 0.15~4.2"/min

Related Products

Specifications
Capacity125 Kg (275 lbs)
Travel RateRefer to Speed Configuration above
DimensionsRefer to Dimensions above
Compatible GaugesDS2 and Z2S-LM a
Warranty2 years
*NoteOptional Distance Meter Max Sampling Rate Output - 2 Samples Per Second
