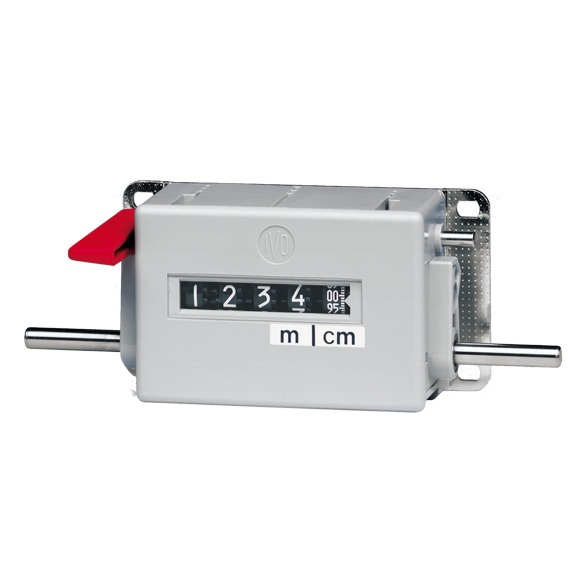

M410a IVO Mechanical Meter Counter - PTB approved


Made in GermanyCounter available in various models described below.

The Mechanical Meter Counters M410.A01 and M410.A02 are calibrated by the German Physical-Technical Institute (PTB) and approved for calibration measuring systems.


Features
  • Counting in direction of defined rotation (adding).
    Substracting in reverse direction.
  • 5-digit, 9999.95 m
  • Max. 200.00 m/min. with measuring wheel
  • 2 revolutions = 1.00 m displayed in relation with measuring wheel with circumference of 50 cm

Accessories

MR Series 5 IVO Measuring wheels (50 cm circumference)


  • 0.5m circumfence
  • 5 different lining versions:
    • Aluminium, Cross knurl
    • Smooth Vulkollan
    • Knopped rubber
    • Smooth Hytrel
    • Grooved Hytrel
  • 3 bore size diameters; 7mm, 10mm and 12mm.

More details

MR Series 5 IVO Measuring wheels (50 cm circumference) 125882

Dimensions
Dimensions-M410a


Sense of rotation

Downloads

Specifications
Counting mode:In direction of defined rotation, adding. Subtracting in reverse direction.
Display:5-digit, 9999.95 m/cm 1st wheel with dividing lines
Digit size:Approx. 7 mm high, white on black background
Drive shaft:Projecting on both sides, Ø 7 mm
Reset:Reset to zero by pushing the lever (screwed on left or right side, at choice).
Max. Speed:Max. 200.00 m/min. with measuring wheel
Base plate:Steel of 2.5 mm thickness, galvanized
Housing material:Gray plastic
Ambient temperature:0...+60 °C
Weight:Approx. 380 g
If the desired model is not shown in the list of prices, price is on request

Buy Now
Products

Product
Price
Quantity
130956
M410.A01 - IVO Mechanical Meter Counter - PTB approved
€ 346,50
130957
M410.A02 - IVO Mechanical Meter Counter - PTB approved
€ 346,50
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
