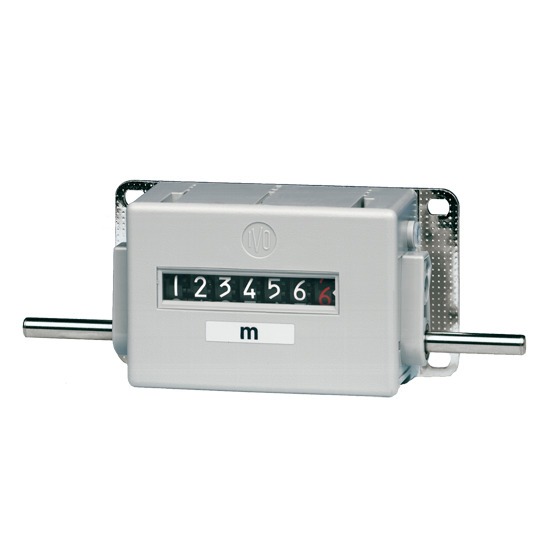

M400 IVO Mechanical Meter Counter with Key Reset


Made in GermanyCounter available in various models described below.

Features
  • Counting in direction of defined rotation (adding).
    Substracting in reverse direction.
  • Measuring up to
    999 999.9m
  • With measuring wheel of 50 cm Max. 100.0 m/min. or max. 1000 digits/min.
  • With removable reset key

Accessories

MR Series 5 IVO Measuring wheels (50 cm circumference)


  • 0.5m circumfence
  • 5 different lining versions:
    • Aluminium, Cross knurl
    • Smooth Vulkollan
    • Knopped rubber
    • Smooth Hytrel
    • Grooved Hytrel
  • 3 bore size diameters; 7mm, 10mm and 12mm.

More details

MR Series 5 IVO Measuring wheels (50 cm circumference) 125882

Dimensions
Dimensions-M400


Sense of rotation

Downloads

Specifications
Display:7-digit, 9 999 999
Digit size:Approx. 7 mm high, white on black background
Reset:Turn removable key on either side to reset
Drive shaft:Projecting on both sides, Ø 7 mm
Housing material:Gray plastic
Base plate:Galvanized steel
Ambient temperature:0...+60 °C
Weight:Approx. 350 g
Counting mode:In sense of rotation to be defined, adding. In reversed direction units digit counts down to zero, then idle run. 2 revolutions = 10 digits = 1.0 m for wheel circumference of 50 cm
Measuring range999 999.9 (decimal display in red)
Max. SpeedWith measuring wheel of 50 cm
Max. 100.0 m/min. or
max. 1000 digits/min.

Buy Now
Products

Product
Price
Quantity
137810
M400.020A03C - IVO Mechanical Meter Counter with detachable Reset-key
€ 214,50
130911
M400.020A03D - IVO Mechanical Meter Counter with detachable Reset-key
€ 214,50
130951
M400.010A03C - IVO Mechanical Meter Counter with detachable Reset-key
€ 214,50
130952
M400.010A03D - IVO Mechanical Meter Counter with detachable Reset-key
€ 214,50
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
If the desired model is not shown in the list of prices, price is on request
