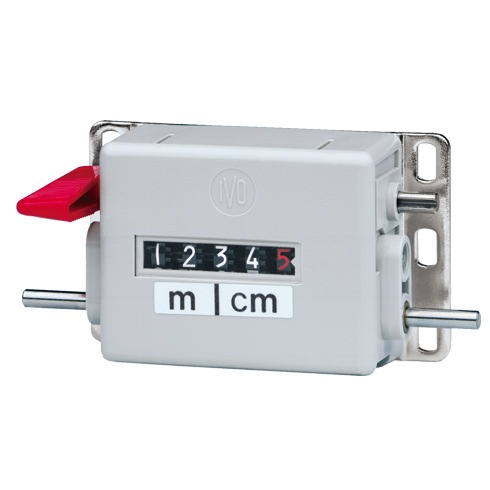

M310a IVO Mechanical Meter Counter - PTB approved


Made in GermanyCounter available in various models described below.

The Mechanical Meter Counters M310.A01 and M310.A02 are calibrated by the German Physical-Technical Institute (PTB) and approved for calibration measuring systems.


Features
  • Counting in direction of defined rotation (adding).
    Substracting in reverse direction.
  • 5-digit, 999.99 m/cm
  • Max. 60.00 m/min.
  • 5 revolutions = 1.00 m displayed in relation with measuring wheel with circumference of 20 cm 1 digit = 1 cm

Accessories

MR Series 2 IVO Measuring wheels (20 cm circumference)


  • 0.2 meter circumfence
  • 5 different lining versions:
    • Aluminium, Cross knurl
    • Aluminium, axial and circumf. knurl
    • Knopped rubber
    • Smooth Hytrel
    • Grooved Hytrel
  • 3 different Bore diameters
    4, 6 or 7 mm

More details

MR Series 2 IVO Measuring wheels (20 cm circumference) 125883

Dimensions
Dimensions-M310a


Sense of rotation

Downloads

Specifications
Counting mode:In direction of defined rotation, adding. Subtracting in reverse direction.
Display:5-digit, 999.99 m/cm
Digit size:Approx. 4.5 mm high, white on black background, decimal in red
Drive shaft:Projecting on both sides, Ø 4 mm
Reset:Reset to zero by pushing the lever (with socket on left or right side, at choice).
Max. Speed:Max. 60.00 m/min.
Base plate:Steel of 2 mm thickness, galvanized
Housing material:Gray plastic
Ambient temperature:0...+60 °C
Weight:Approx. 130 g

Buy Now
Products

Product
Price
Quantity
130949
M310.A01 - IVO Mechanical Meter Counter - PTB approved
€ 199,00
130950
M310.A02 - IVO Mechanical Meter Counter - PTB approved
€ 199,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
