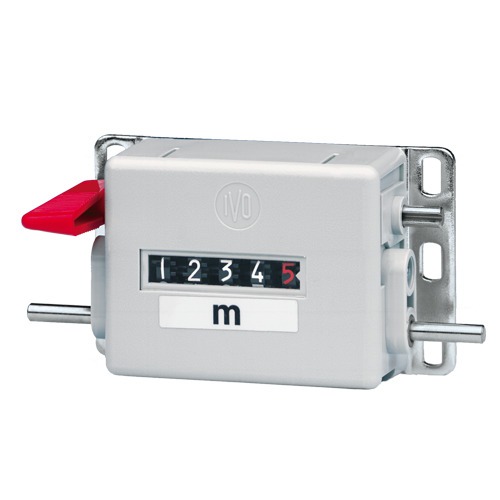

M310 IVO Mechanical Meter Counter


Made in GermanyCounter available in various models described below.

Features
  • Counting in direction of defined rotation (adding).
    Substracting in reverse direction.
  • Measuring up to 9 999.9m
  • Max. speed with wheel of 20 cm: 200m/min. Without measuring wheel: max 300 m/min.

Accessories

MR Series 2 IVO Measuring wheels (20 cm circumference)


  • 0.2 meter circumfence
  • 5 different lining versions:
    • Aluminium, Cross knurl
    • Aluminium, axial and circumf. knurl
    • Knopped rubber
    • Smooth Hytrel
    • Grooved Hytrel
  • 3 different Bore diameters
    4, 6 or 7 mm

More details

MR Series 2 IVO Measuring wheels (20 cm circumference) 125883

Dimensions
Dimensions-M310


Sense of rotation

Sense of rotation


Downloads

Specifications
Display:5-digit, 99 999
Digit size:Approx. 4.5 mm high, white on black
Reset:Reset by pushing the socket lever, mounted on left or right side, at choice
Drive shaft:Projecting on both sides, Ø 4 mm
Housing material:Gray plastic
Base plate:Galvanized steel
Ambient temperature:0...+60 °C
Weight:Approx. 130 g
Counting mode:In sense of rotation to be defined, adding. Subtracting in reversed
Measuring range:9999.9 m (decimal display in red)
Max. Speed:With 20 cm measuring wheel: max. 200 m/min.
Without measuring wheel: max. 300 m/min.

Buy Now
Products

Product
Price
Quantity
130948
M310.010A06D - IVO Mechanical Meter Counter
€ 177,00
130947
M310.010A06C - IVO Mechanical Meter Counter
€ 177,00
133713
M310.010B06D - IVO Mechanical Meter Counter
€ 177,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
