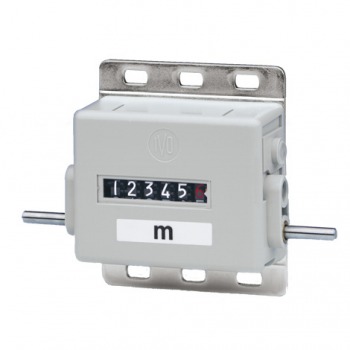

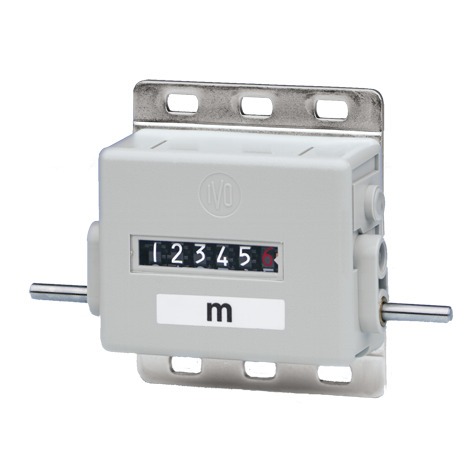

M300 IVO Mechanical Meter Counter With Key Reset
Counter available in various models described below. Features
- Counting in direction of defined rotation (adding).
Substracting in reverse direction. - Measuring up to
99 999.9 m - Max. speed with wheel of 20 cm: 100m/min. Without measuring wheel: max 300 m/min.
- With key reset
Dimensions
Accessories
MR Series 2 IVO Measuring wheels (20 cm circumference)
- 0.2 meter circumfence
- 5 different lining versions:
- Aluminium, Cross knurl
- Aluminium, axial and circumf. knurl
- Knopped rubber
- Smooth Hytrel
- Grooved Hytrel
- 3 different Bore diameters
4, 6 or 7 mm
More details
Specifications
| Display: | 6-digit, 999 999 |
| Digit size: | Approx. 4.5 mm high, white on black background |
| Reset: | Turn removable socket key on either side to reset |
| Drive shaft: | Projecting on both sides, Ø 4 mm |
| Housing material: | Gray plastic |
| Base plate: | Steel, galvanized |
| Ambient temperature: | 0...+60 °C |
| Weight: | Approx. 130 g |
| Counting mode: | In sense of rotation to be defined, adding. Subtracting in reversed direction. |
| Measuring range: | 99 999.9 m (decimal display in red) |
| Max. Speed: | With measuring wheel of 20 cm: max. 100 m/min. Without measuring wheel: max. 300 m/min. |
