MR Series 2 IVO Measuring wheels (20 cm circumference)


Made in GermanyWhen selecting a measuring wheel, consider the type of goods to be measured before you choose the surface properties or the lining of the measuring wheel. The circumference of the measuring wheel should be chosen according to the available space and size of the counter. The smaller the measuring wheel, the more force will need to be exerted on its circumference and the greater the probability of drift leading to false results. The width of the measuring wheel also influences the measuring result.

Features
  • 0.2 meter circumfence

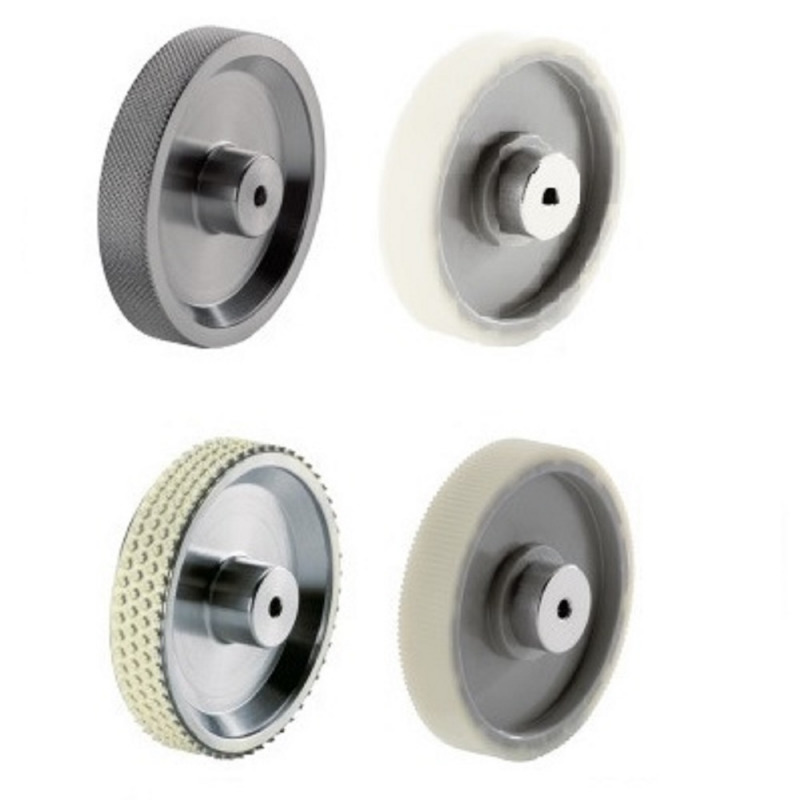

  • 5 different lining versions:
  • Aluminium, Cross knurl
  • Aluminium, axial and circumf. knurl
  • Knopped rubber
  • Smooth Hytrel
  • Grooved Hytrel
  • 3 different Bore diameters
    4, 6 or 7 mm

Measuring accuracy
The measuring accuracy of a meter counter with measuring wheel depends on the following features:

  • Type of products to be measured
  • Angle of contact
  • Torque of counter or encoder
  • Feeding speed of products
  • Tensile stress of products to be measured
  • Surface roughness
  • Contact pressure of products to be measured against measuring wheel
  • Suppleness of products to be measured
  • Diametrical tolerance of measuring wheel


  • Suitable products to be measured
    Recommended limingSuitable material
    Grooved HytrelPlastic, Painted material, Paper, Cardboard, Wood, Metal, Textile
    Smooth HytrelPlastic, Painted material, Paper, Cardboard, Wood, Metal, Textile
    Cross knurlCardboard, Wood, (Textile)
    Knopped rubberTextile

    Dimensions
    Dimensions Measuring wheels MR Series 2


    Model Selector

    Downloads

    Buy Now
    Products

    Product name
    Price
    Quantity
    MR211.04A IVO Measuring wheels (20 cm circumference)
    € 41,20
    MR211.06A IVO Measuring wheel
    € 41,20
    MR211.07A IVO Measuring wheel
    € 41,20
    MR211.10A IVO Measuring wheel
    € 41,20
    MR241.04D IVO Measuring wheel
    € 38,80
    MR241.05D IVO Measuring wheel
    € 38,80
    MR241.06D IVO Measuring wheel
    € 38,80
    MR241.07D IVO Measuring wheel
    € 38,80
    MR241.10D IVO Measuring wheel
    € 38,80
    MR261.04A IVO Measuring wheel
    € 48,20
    MR261.06A IVO Measuring wheel
    € 48,20
    MR261.07A IVO Measuring wheel
    € 48,20
    MR261.10A IVO Measuring wheel
    € 48,20
    MR291.04D IVO Measuring wheel
    € 38,80
    MR291.06D IVO Measuring wheel
    € 38,80
    MR291.07D IVO Measuring wheel
    € 38,80
    MR291.10D IVO Measuring wheel
    € 38,80
    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability: Available , preorder 1-2 weeks , special order, request
