Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands


These adapters provide a commonly accepted industry method of attaching fixtures to load cells and test frames. They prevent grip rotation and allow for quick removal and installation. Several thread sizes and variations are available to suit most common test frames, load cells, grips, and force gauges. Eye ends and adapters are available individually or as kits.

Force Gauge Adapter Kits

Model no. Description
AC1045 Force gauge adapter kit, #10-32F
AC1045-1 Force gauge adapter kit, 5/16-18F
AC1045-2 Force gauge adapter kit, 1/2-20M



Grip Adapter Kits

Model no. Description
AC1046 Grip adapter kit, #10-32M
AC1046-1 Grip adapter kit, 5/16-18M
AC1046-2 Grip adapter kit, 1/2-20M



Base / Load Cell Adapter Kits

Model no. Description
AC1047 Base / load cell adapter kit, #10-32M
AC1047-1 Base / load cell adapter kit, 5/16-18M
AC1047-2 Base / load cell adapter kit, 1/2-20M
AC1047-3 Base / load cell adapter kit, 1/4-28M
AC1047-4 Load cell adapter, Series R03, #10-32M

Kit Compatibility Chart
Model No. Description Compatibility
AC1047 Base / load cell adapter kit, #10-32M - Test stand bases w/ #10-32 mounting
AC1047-1 Base / load cell adapter kit, 5/16-18M - Test stand bases w/ 5/16-18 mounting
AC1047-2 Base / load cell adapter kit, 1/2-20M - Test stand bases w/ 1/2-20 mounting
- Models MR01-300 / -500 / -750 / -1000 / -1500 / -2000 load cells
AC1047-3 Base / load cell adapter kit, 1/4-28M - Models MR01-50 / -100 / -200 load cells
AC1047-4 Load cell adapter, Series R03, #10-32M - Series R03 load cells
AC1046 Grip adapter kit, #10-32M - Grips with #10-32 mounting
AC1046-1 Grip adapter kit, 5/16-18M - Grips with 5/16-18 mounting
AC1046-2 Grip adapter kit, 1/2-20M - Grips with 1/2-20 mounting
AC1045 Force gauge adapter kit, #10-32F - Force gauges up to 100 lbF capacity
AC1045-1 Force gauge adapter kit, 5/16-18F - Force gauges with 200, 300, and 500 lbF capacities
AC1045-2 Force gauge adapter kit, 1/2-20M - Models M5-750 - M5-2000 force gauges

Grip to Force Gauge-Sensor configuration
force-gauge-configuration

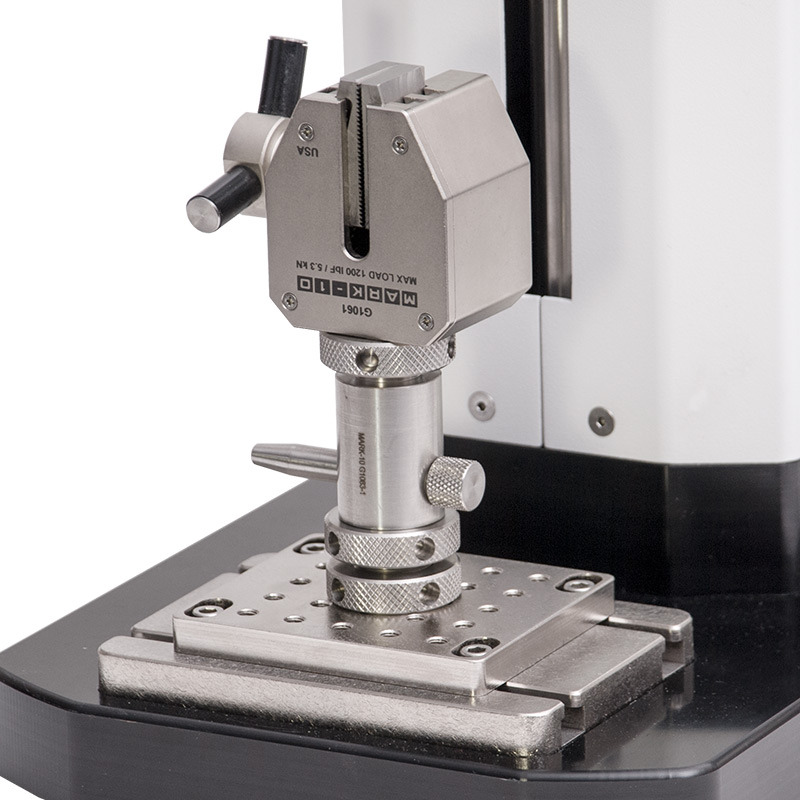

Grip to Base configuration
Grip to Base configuration
