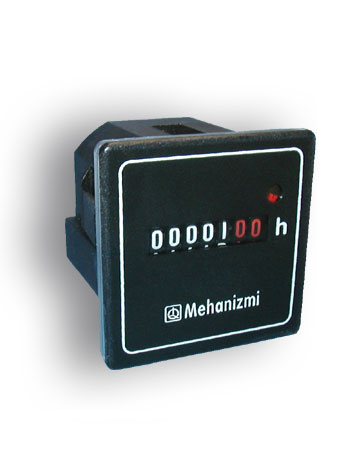

B 160 IVO Time Meter


IVO operating time counters are used in all those instances where costs need to be made transparent, where maintenance intervals are to be kept, where guarantee periods need to be assessed or operating hours are to be captured.

Cutout sizes

Specifications
Display:7-digit roller-type counter, 4 mm high, red decimal display
With running display (AC)
Without reset
Counting capacity:AC: 99 999,99 h
DC: 999 999,9 h
Reading accuracy:AC: 1/100 h = 36 s
DC: 1/10 h = 6 min
Front dimensions:48 x 48 mm
Type of mounting:Built in counter with clamping frame or adapter for mounting on rail.
EN 50022
Weight:Approximately 110 g
Housing material:Plastic black
Supply voltage:- 24, 230 VAC ±10 %, 50 Hz
- 110 ±10 % VAC, 60 Hz
- 10...80 VDC
Power consumption:AC 0.1...1.5 VA
DC 0.1...1.5 W
Running accuracy:AC: synchronous to supply net, synchronous motor
DC: <1s / 24 h, stepping motor
E-connection:Screw terminal or flat-cable plug (combined) 6.3 x 0.8 mm
Ambient temperature:-20...+70 °C
Storage temperature:-40...+80 °C
Relative humidity:Max. relative humidity 80 %, at 25 °C, non-condensing
Protection:Front IP 40
General rating:IEC 61010-1
Emitted interference:EN 55014-1
Interference immunity:EN 55014-2

Dimensions
Dimensions B 160


Accessories
Optional available for counter HK46
Z 118.037 Adapter frame, front 55x55 mm
Z 118.038 Adapter frame, front 72x72 mm
Z 118.039 Adapter for mounting on rail (EN 50022)

Model Selector

Downloads

Buy Now
Product

Product name
Price
Quantity
B 160.100ACBB IVO Time Meter
€ 43,35
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
