GP-15, Imada Grips
GP-15, Imada Grips
GP-15, Imada Grips

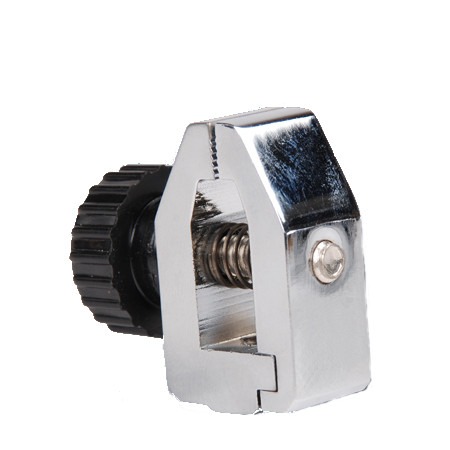

GP-15 General Purpose Grip


No longer available.
We recommend the G1008 as replacement.

Width: 15m / 0.59"
Max Sample Thickness: 4mm / 0.16"

The GP-15 general purpose grip is designed for gripping film, paper, labels, packaging, and other thin materials for tensile and peel testing. Adjustable serrated interlocking jaws effectively grip the samples for up to 110 lb of force. Use them with a force gauge and a test stand to create a complete testing system.

Dimensions
Dimensions Imada Grips  GP-15


Specifications
Capacity
110 lbs.
Width
15m / 0.59"
Maximum Sample Thickness
4mm / 0.16"
Thread Size
M6 Female
