SERIES FS05 Series FS05 Force Sensors


Made in the USATension and Compression Force Sensors

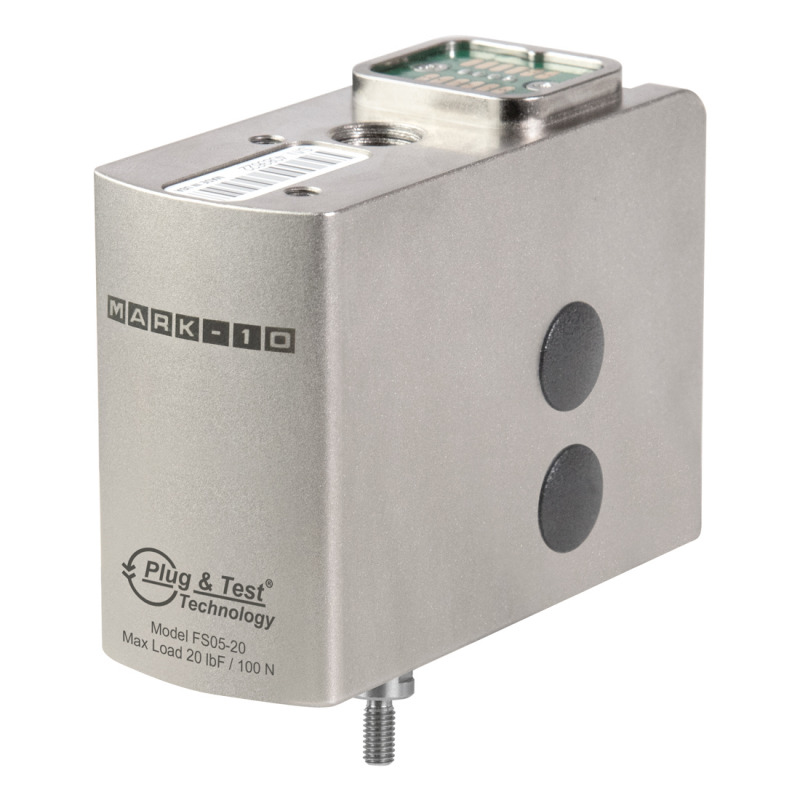

Series FS05 force sensors measure tension and compression forces. They can be mounted directly to the crosshead of models F105, F305, F505, and F505H test frames.

With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter required). Ranges available from 0,5 N to 2,5 kN.


Features
  • Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
  • Member of the Plug & Test® family of interchangeable sensors and indicators (adapter required)
  • Measure tension and compression force
  • NIST-traceable certificate of calibration with data is included
  • Warranty: 3 years

Specifications
Accuracy± 0.1% of full scale + indicator or test frame
Safe Overload150% of full scale
Weight0,9 – 1,4 kg

Capacity x Resolution
ModellbFozFgFkgFNkNmN
FS05-0120,12 x 0,000022 x 0,000550 x 0,01-0,5 x 0,0001-500 x 0,1
FS05-0250,25 x 0,00014 x 0,002100 x 0,05-1 x 0,0005-1000 x 0,5
FS05-050,5 x 0,00028 x 0,005250 x 0,1-2,5 x 0,001-2500 x 1
FS05-22 x 0,00132 x 0,021000 x 0,51 x 0,000510 x 0,005--
FS05-55 x 0,00280 x 0,052500 x 12,5 x 0,00125 x 0,01--
FS05-1010 x 0,005160 x 0,15000 x 25 x 0,00250 x 0,02--
FS05-2020 x 0,01320 x 0,0210000 x 510 x 0,005100 x 0,05--
FS05-5050 x 0,02800 x 0,525000 x 1025 x 0,01250 x 0,1--
FS05-100100 x 0,051600 x 150000 x 2050 x 0,02500 x 0,2--
FS05-200200 x 0,13200 x 2-100 x 0,051000 x 0,51 x 0,0005-
FS05-300300 x 0,24800 x 5-150 x 0,11500 x 11,5 x 0,001-
FS05-500500 x 0,28000 x 5-250 x 0,12500 x 12,5 x 0,001-

Complete Kit

Included Accessories

Image on the left shows an overview of which accessories will be included when purchasing a certain model of the FS05 Series Force Sensors.

A NIST traceable certificate is included on each model.



Downloads

Dimensions
Dimensions-SERIES FS05


F505-012 - FS05-100: #10-32 UNF Thread
FS05-200 - FS05-500: 5/16-18 UNC Thread


Related Products

F105 / F305 / F505 / F505H Force Test Frame with IntelliMESUR® controls


  • Set up, run, and analyze data via the integrated IntelliMESUR® control panel
  • Integrated motion control and data collection solution with seamless interface for FS05 force sensor without cables
  • Plug & Test® system can work with third-party load cells through PTAF adapter

More details

F105 / F305 / F505 / F505H Force Test Frame with IntelliMESUR® controls

Buy Now
Products

Product
Price
Quantity
137865
FS05-012 Force sensor, 0.12 lbF / 2 ozF / 50 gF / 0.5 N / 500 mN
€ 1.804,00
137866
FS05-025 Force sensor, 0.25 lbF / 4 ozF / 100 gF / 1 N / 1000 mN
€ 1.441,00
137867
FS05-05 Force sensor, 0.5 lbF / 8 ozF / 250 gF / 2.5 N / 2500 mN
€ 1.441,00
137868
FS05-2 Force sensor, 2 lbF / 32 ozF / 1 kgF / 1000 gF / 10 N
€ 1.277,00
137869
FS05-5 Force sensor, 5 lbF / 80 ozF / 2.5 kgF / 2500 gF / 25 N
€ 1.277,00
137870
FS05-10 Force sensor, 10 lbF / 160 ozF / 5 kgF / 5000 gF / 50 N
€ 1.277,00
137871
FS05-20 Force sensor, 20 lbF / 320 ozF / 10 kgF / 10000 gF / 100 N
€ 1.277,00
137872
FS05-50 Force sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N
€ 1.277,00
137873
FS05-100 Force sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N
€ 1.277,00
137874
FS05-200 Force sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN
€ 1.441,00
137875
FS05-300 Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN
€ 1.441,00
137876
FS05-500 Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN
€ 1.441,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
