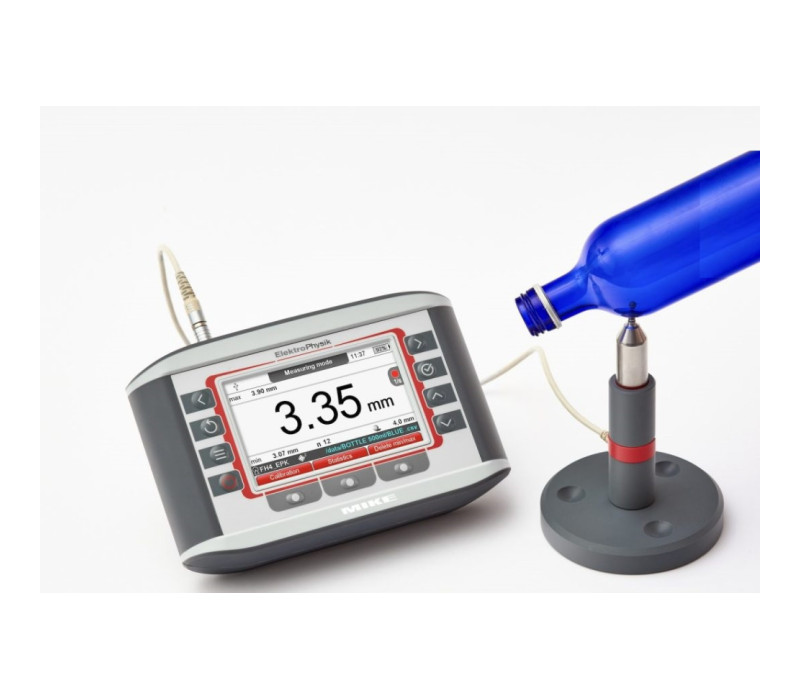

MiniTest FH Series Precision Magnetic Thickness Gauge


Made in GermanyThe FH-Serie models: FH-7200 and FH-7400 are portable thickness measuring devices that are capable to measure precisely materials with a thickness up to 24 mm. Their small size and portability makes them ideal to be used in production areas and quality laboratories. With the FH Serie models accurate thickness measurements can be done on all types of non-ferrous products, regardless of their size, shape, and material.

The FH-7200 and FH-7400 are ideal for applications where accurate measurement of sharp corners, small radiuses and/or complex shapes are required.

The two Models available in this serie

FH-7200 offers measurement capabilities including real-time thickness measurement, display of minimum & maximum readings, an offset mode, and automatic storage of up to 100,000 values.

FH-7400 this model has the same capabilities as the MiniTest 7200 FH but with extra features: statistical graphing, real time trend, data base with up to 200 batches and increased automatic storage of up to 240.000 values. e.g. 1200 per batch.

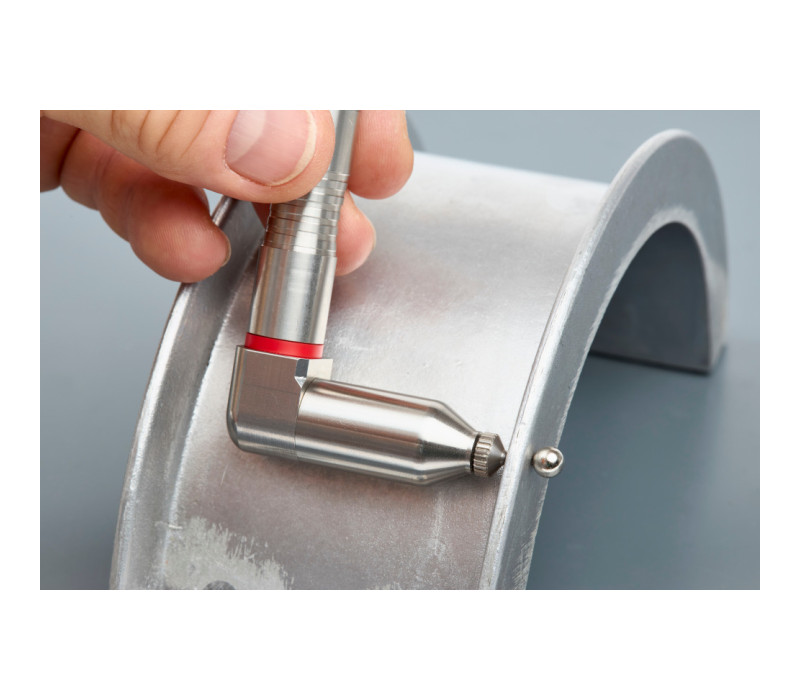

There are five probes available

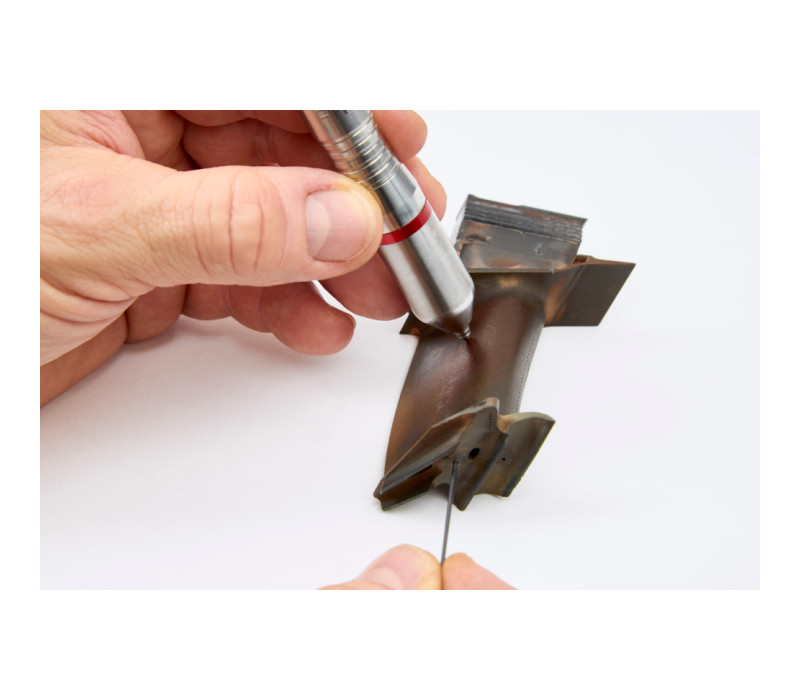

FH4 Standard Probe (Measuring range 0 - 6mm / calibration curves for ball sizes 1.5mm, 2.5mm, 4mm)

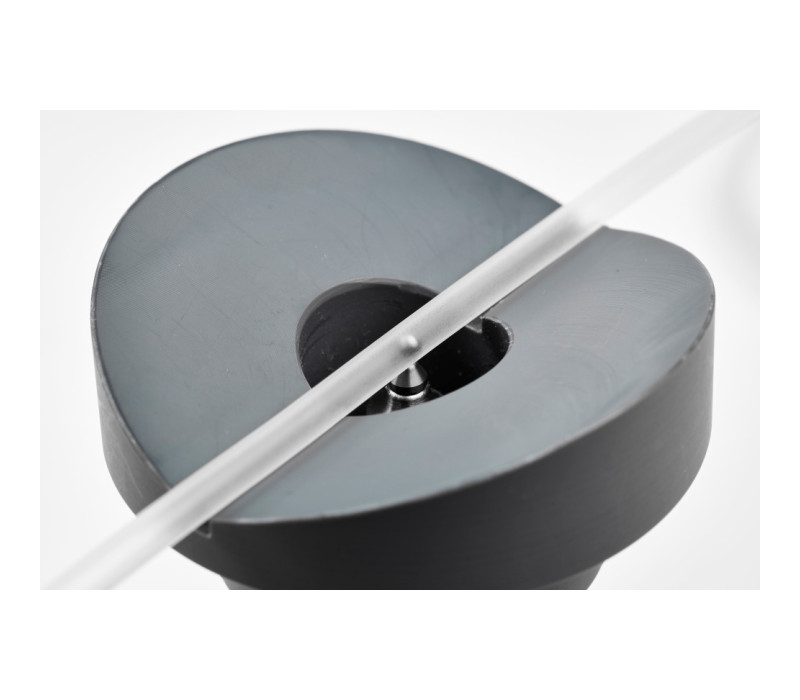

FH4-1MM Probe (Measuring range 0 - 6mm / same as standard FH4 probe with additional 1mm ball calibration curve for very small concave surfaces)
FH4-M Probe (Measuring range 0 - 9mm / same as standard FH4 but also suitable for magnetic balls to extend measuring range to 9mm)

FH10 Standard Probe (Measuring range 0 - 13mm / calibration curves for balls sizes 2.5mm, 4mm, 6mm, 9mm)
FH10-M Standard Probe (Measuring range 0 - 24mm / same as standard FH10 but also suitable for magnetic balls to extend measuring range to 24mm)


Features

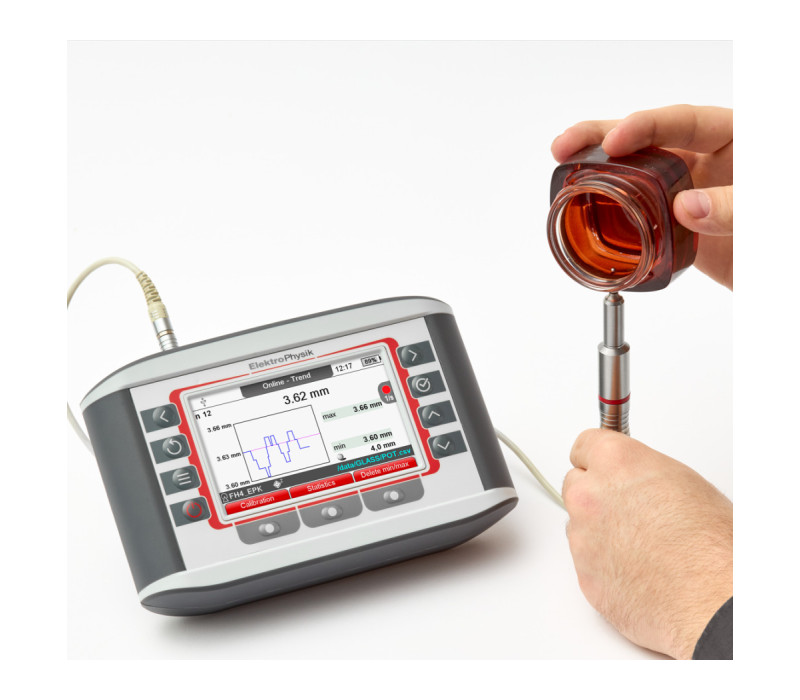

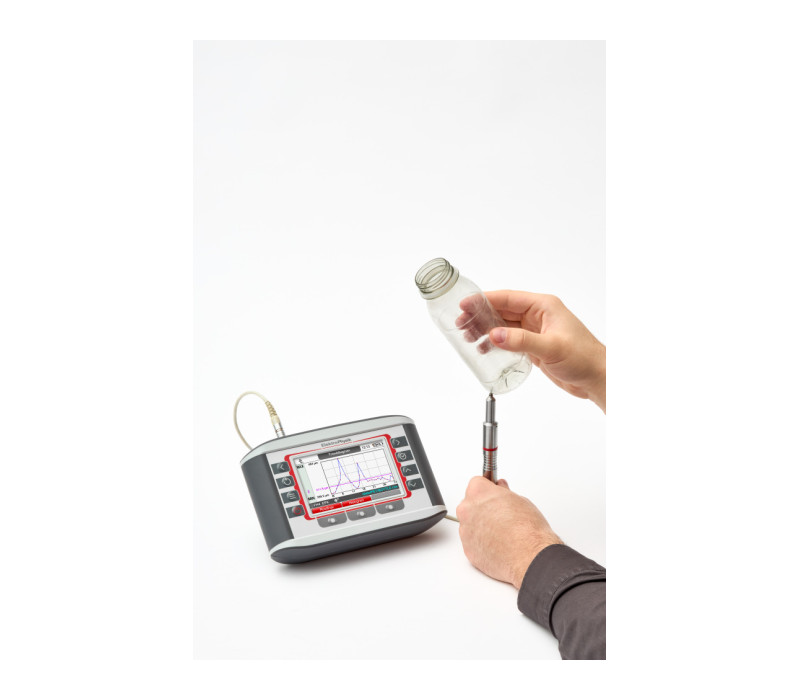

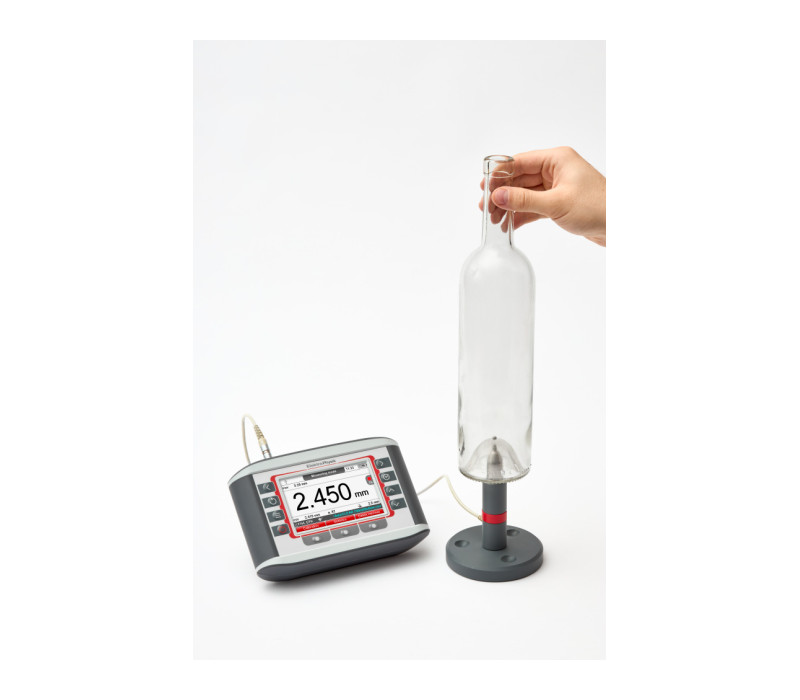

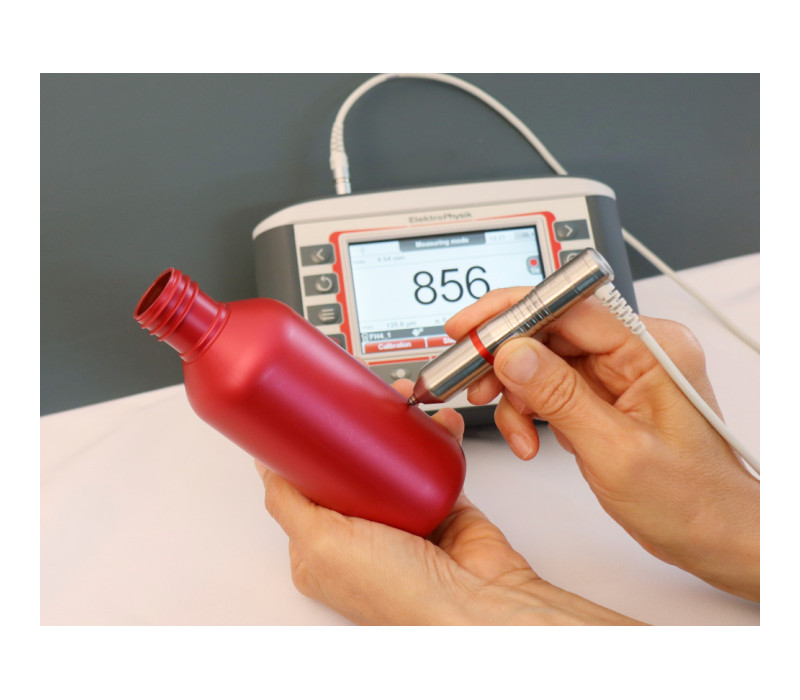

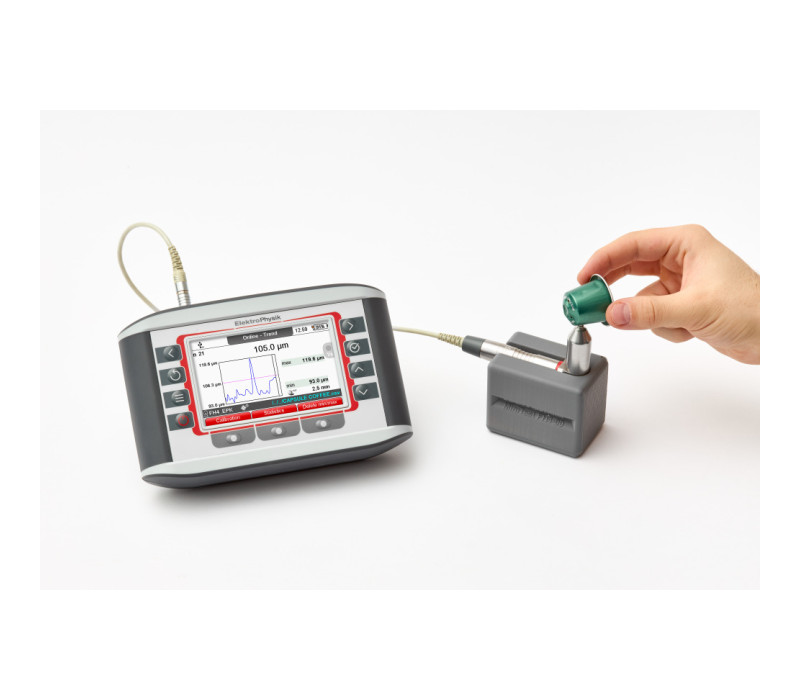

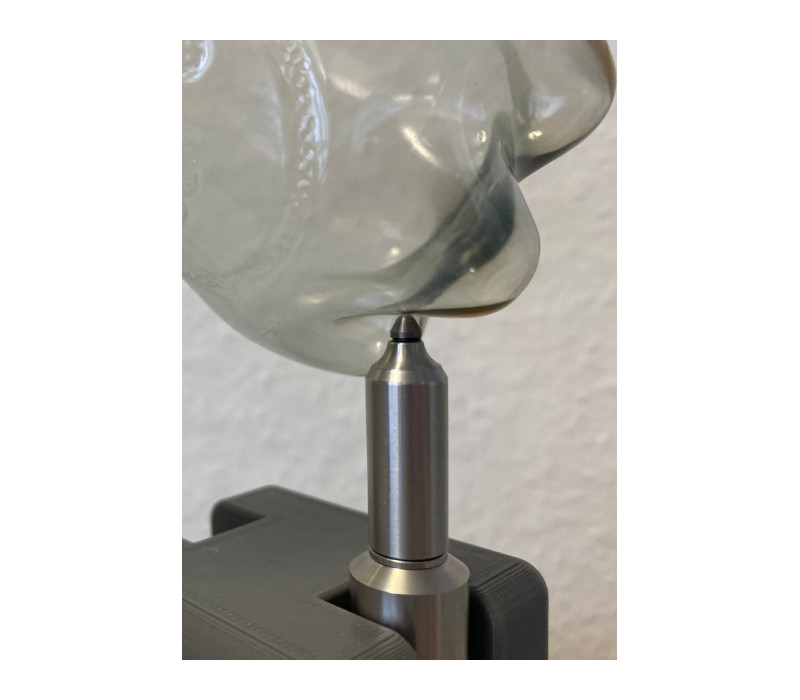

  • Ideal for Bottles, Aluminium Cans, Glass and Plastic Components with Complex Shapes
  • Large, easy-to-read display
  • Data capture up to 20 data points per second
  • Sensor-integrated digital signal processing
  • Minimum and maximum readings
  • Multi-point calibration up to 5 points
  • High precision target balls for reproducible measurements
  • Menu-controlled user interface
  • Context-sensitive on-line help
  • SPC capabilities

Complete Kit

The basic units MiniTest FH7200 and MiniTest FH7400 are supplied in foam fitted case and it contains the following items:

- MiniTest FH7200 or MiniTest FH7400 Device
- Rubber protection case with integrated table stand
- Operating instructions (English/German/French/Spanish/Portuguese/Italian)
- 4x AA Batteries, type LR06 - MSoft 7 Professional Edition
- Magnetic Screwdriver

Depending on the selection of your probe the following scope of the delivery applies:

FH4 Probe
- Magnetic Probe Protection sleeve and end cap

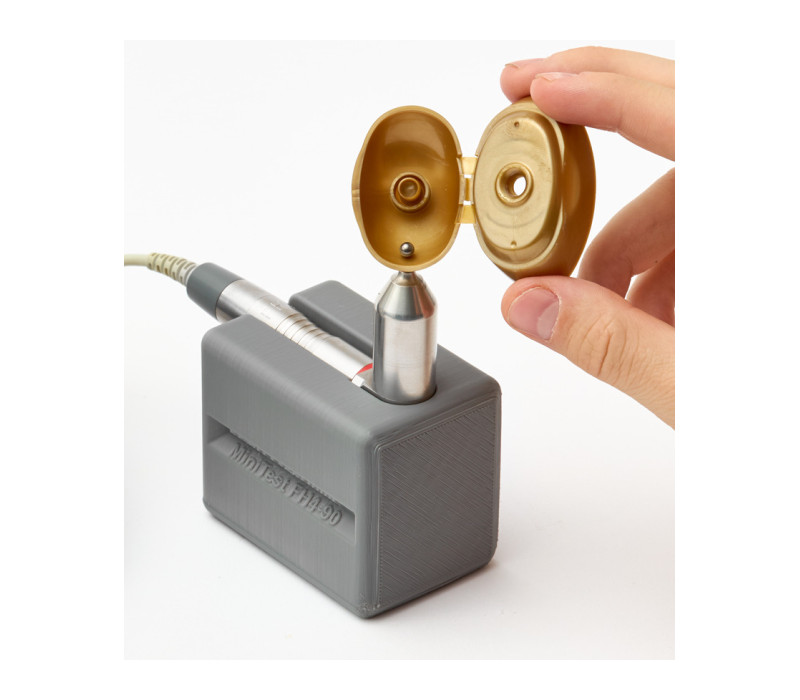

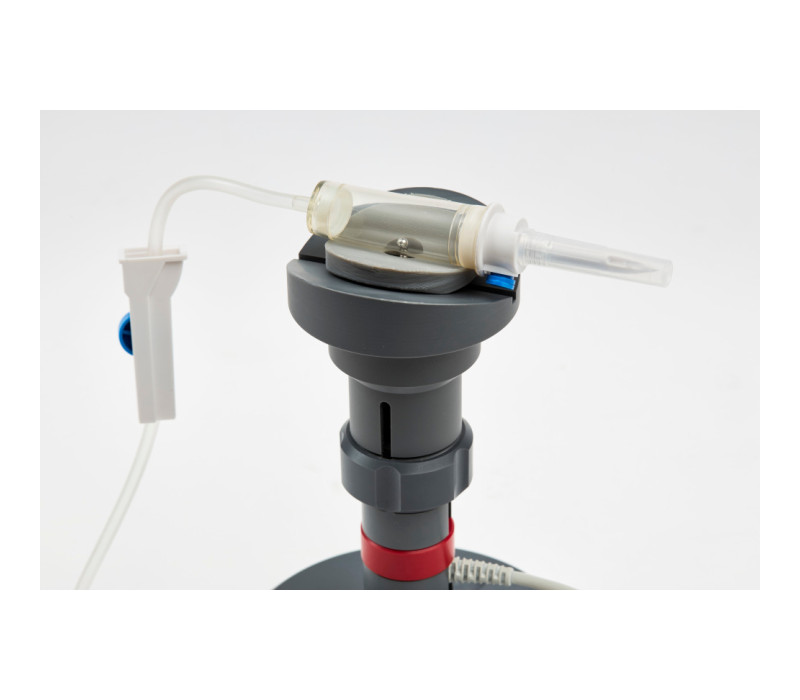

- Spring loaded probe holder / Table stand
- 100 pcs Ø 1.5mm balls / 100 pcs Ø 2.5mm / 50 pcs Ø 4.0mm
- Zero calibration tip for Ø 1.5mm / Ø 2.5mm /  Ø 4.0mm balls
- Calibrations Standards: 0.25mm / 1mm / 3mm

FH4-1MM Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- 100 pcs Ø 1.0mm balls / 100 pcs Ø 1.5mm balls / 100 pcs Ø 2.5mm / 50 pcs Ø 4.0mm
- Zero calibration tip for Ø 1.0mm / Ø 1.5mm / Ø 2.5mm /  Ø 4.0mm balls
- Calibrations Standards: 0.15mm / 0.25mm / 1mm / 3mm

FH4-M Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- 100 pcs Ø 1.5mm balls / 100 pcs Ø 2.5mm / 50 pcs Ø 4.0mm / 25 pcs Ø 1.5mm magnetic balls / 20 pcs Ø 3.0mm magnetic balls
- Zero calibration tip for Ø 1.5mm / Ø 2.5mm /  Ø 3.0mm /  Ø 4.0mm balls
- Calibrations Standards: 0.25mm / 1mm / 3mm / 8mm

FH10 Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- 100 pcs Ø 2.5mm balls / 50 pcs Ø 4.0mm / 25 pcs Ø 6.0mm / 10 pcs Ø 9.0mm
- Zero calibration tip for Ø 2.5mm / Ø 4mm /  Ø 6mm /  Ø 9mm balls
- Calibrations Standards: 1mm / 3mm / 8mm

FH10-M Probe
- Magnetic Probe Protection sleeve and end cap
- Spring loaded probe holder / Table stand
- 100 pcs Ø 2.5mm balls / 50 pcs Ø 4.0mm balls / 25 pcs Ø 6.0mm balls /
   20 pcs Ø 4.0mm magnetic balls / 20 pcs Ø 6.0mm magnetic balls /  10 pcs Ø 9.0mm magnetic balls
- Zero calibration tip for Ø 2.5mm / Ø 4mm /  Ø 6mm /  Ø 9mm balls
- Calibrations Standards: 1mm / 3mm / 8mm / 18mm







Specifications

Measuring Range all FH4 probes
0-1.3mm with 1.0mm ball (FH4-1MM Only!)
0-2.0mm with 1.5mm ball
0-3.5mm with 2.5mm ball
0-6.0mm with 4.0mm ball
0-5.0mm with 1.5mm magnetic ball (FH4-M Only!)
0-9.0mm with 3.0mm magnetic ball (FH4-M Only!)
Measuring Range
with FH10 Probes
0-4.0mm with 2.5mm ball
0-7.0mm with 4.0mm ball
0-10.0mm with 6.0mm ball
0-13.0mm with 9.0mm ball
0-16.0mm with 4.0mm magnetic ball (FH10-M only!)
0-24.0mm with 6.0mm magnetic ball (FH10-M only!)
Accuracy
with FH4 Probes
0-1.3mm (1mm ball): ±(3 µm + 1% of reading)
0-2.0mm: ±(3 µm + 1% of reading)
0-3.5mm: ±(5 µm + 1% of reading)
0-6.0mm: ±(10 µm + 1% of reading)
0-5.0mm (magnetic): ±(20 µm + 2% of reading)
0-9.0mm (magnetic): ±(40 µm + 2% of reading)
Accuracy
with FH10 Probes
0-4.0mm: ±(5 µm + 1% of reading)
0-7.0mm: ±(10 µm + 1% of reading)
0-10.0mm: ±(20 µm + 1% of reading)
0-13.0mm: ±(20 µm + 1% of reading)
0-16.0mm (magnetic): ±(40 µm + 2% of reading)
0-24.0mm (magnetic: ±(60 µm + 2% of reading)
Low Range Resolution
FH4: 0.1 µm
FH10: 0.2 µm
Repeatability
Better than ± (1 µm + 0.5 % of reading)
Measuring Principle
Magnetostatic
Logging Rate
1, 2, 5, 10, 20 readings per second (selectable)
Data Memory
FH7200: 100,000 values
FH7400: 240,000 values
Calibration Modes
Factory, Zero, Zero + up to 4 points
Measuring Units
Metric: µm, mm
Imperial mils, inch
Statistical Charting
Numeric, trend, and histogram (with MiniTest 7400 FH only)
Interfaces
RS232 TTL + IrDA 1.0
Models
MiniTest 7200 FH
MiniTest 7400 FH
Operating temperature
–10 °C to +60°C (Storage temperature: –20°C to +80°C)
Dimensions
153 mm x 89 mm x 32 mm
Weight
310 grams
Power supply
4 x AA batteries, or optional AC adapter

Video


Downloads


Buy Now

Products


Product name
Price
Quantity
FH7200 - MiniTest FH 7200 Wall Thickness Gauge (without probe)
€ 3.270,00

FH7400 - MiniTest FH 7400 Wall Thickness Gauge (without probe)
€ 4.290,00

FH4 Standard Probe measuring range (0 -6mm)
€ 3.065,00

FH4-1MM Probe suitable for additional 1mm balls
€ 3.210,00

FH4-M - FH4 Probe with extended measuring range (0 -9mm)
€ 3.415,00

FH10 Standard Probe measuring range (0 -13mm)
€ 3.400,00

FH10-M Probe Probe with extended measuring range (0 -23mm)
€ 3.730,00



Accessories


Product name
Price
Quantity
FH-BALLS-15 - MiniTest Steel Balls 1.5 mm - 100 pieces
€ 23,50

FH-BALLS-25 - MiniTest Steel Balls 2.5 mm - 100 pieces
€ 23,50

FH-BALLS-40 - MiniTest Steel Balls 4.0 mm - 50 pieces
€ 23,50

FH-BALLS-60 - MiniTest Steel Balls 6.0 mm - 25 pieces
€ 29,50

FH-BALLS-90 - MiniTest Steel Balls 9.0 mm - 10 pieces
€ 22,50

FH-CONN-BOX - MiniTest Connection Box with USB Cable
€ 222,50

FH-FOOT-SWITCH - MiniTest Foot Switch
€ 235,00

FH-ADAPTER - MiniTest FH Main Power Adapter
€ 70,00

FH-USB - MiniTest FH USB Connection cable to PC
€ 119,50

FH-IRDA - MiniTest IRDA IR adapter for PC
€ 59,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
