TA202 Tachometer with calculation functions and 2 Limits

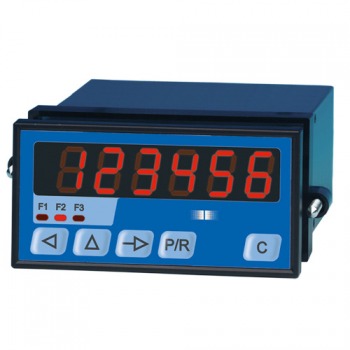

High quality tachometers by IVO, available in many different types shown below. The TA202 is equipped with a mounting plate to install the tachometer in many applications.

Two limits that can be deliberately defined under “P1” and “P2”, allow to monitor production processes.

Two tachometers allow to capture and display, for example, the rotational speed and speed at “F1” and “F2” as well as to use a calculation function programmed by the user that can be selected via “F3” and displayed. It is possible to display ratio, difference, stretching / shrinking, run time, time measurement with start and stop signal, length of period, pulse duration or measurement of pulse rate via the calculation functions.

The TA202 is also equipped with an electronic trailing needle to be assigned by the operator to “F1”, “F2” or “F3”. This maximum memorized value can be selected via “SZ” and thus displayed.

Features
  • Tachometer with 2 adjustable limits
  • Sensor logic can be programmed
  • Pulse valuation can be programmed from 0.0001 to 9999.99
  • Frequencies processed up to 40 kHz
  • Precise measurement due to phase evaluation
  • Measurement according to measurement of lenght of period
  • Interface RS485, RS422, RS232, Analog output

Dimensions

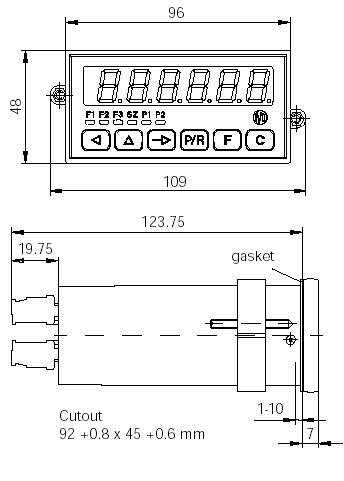

Dimensions-TA202


Product Configurations

Pin assignment
Pin assignment


Block Diagram

Specifications
Electrical data
Supply voltage:Choice of two voltages via switch on device.
Always set to higher voltage when supplied.
115 ±10% / 230 VAC ±10% (50 / 60 Hz)
24 / 48 VAC ±10% (50 / 60 Hz)
24 VDC ±10%, 5% RW
Power consumption:7 VA, 5 W
Sensor supply:12...26 VDC / max. 100 mA
Signal inputs:Comparator inputs
PNP, NPN, Sinus or NAMUR without explosion protection
Voltage level 4...40 V
Input resistance 3 kOhm
Input frequency:F1 / F2, 10 kHz / 40 kHz or 25 Hz
Control inputs:Control inputs for Start, Stop
Electr. signal outputs:Optocoupler
Max. switching voltage +40 V
Max. switching current 15 mA
Residual voltage ¡Ü 1 V
Relay signal outputs:2 floating center-zero relays
Internal spark suppression
Max. switch. voltage 250 VAC/110 VDC
Max. switch. current 1 A under ohmic load
Switching capacity 150 VA / 30 W
Analog output:0(2)...10 V, 0(4)...20 mA
Free assignment to F1, F2 or F3
Offset as well as lower and upper analog limit can be programmed
Data back-up:> 10 years via EEPROM


Mechanical data
Display:7-segment LED-display
6-digit display of real values, 14 mm high
Decimal point can be programmed
Suppression of leading zero
Operation, keypad:Front membrane with short-stroke keys
Front dimensions:DIN housing 96 x 48 mm
Mounting:Front-plate installation
Fastening:By means of clamping frame
Weight:Version AC: approx. 350 g
Version DC: approx. 250 g
Connection:Plug-in screw terminals
Grid 5.08 mm / 3.81 mm
Core cross-section:Max. 1.5 mm2
Housing material:Polycarbonate black, UL 94V-0
Front membrane:Polyester


Ambient conditions
Ambient temperature:0...+50 °C
Storage temperature:-20...+70 °C
Relative humidity:Max. relative humidity 80 %, at 25 °C, non condensing
Protection:Front IP 65 to DIN 40050
General rating:EN 61010 Part 1
- Protection class II
- Overvoltage protection categ. II
- Contamination factor 2
Interference immunity:EN 50082-2
Emitted interference:EN 50081-1
