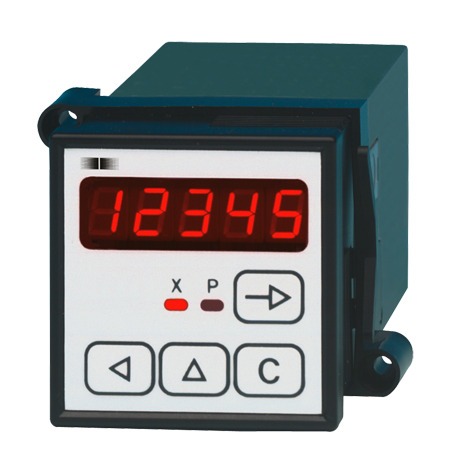

NE210 IVO Multifunctional Counter


Made in GermanyMost popular IVO multifunctional counter with one preset. Can be used in a wide variety of applications. Can be programmed as batch counter, timer, time relay and many more.

Timer with four different time ranges, time relay function with pickup and dropout delay. Start value can be programmed. Also the scaling factor can be programmed.

Block diagram
Pin assignment (With relay output)

Dimensions

Dimensions Electronic Counters NE210


Accessories

Optional available for counter NE210
Z 118.033 Adapter plate for screw fixture
Z 118.034 Adapter plate for clamping bracket fixture
Z 118.035 Adapter plate for clamping bracket fixture with large front plate
See below for dimensions...

Specifications

Display:
7-segment LED-display
5-digit display of real value, 7.6 mm high
Decimal point can be programmed
Suppression of leading zero
Operation, keypad:
Front membrane with short-stroke keys
Front dimensions:
DIN housing 48 x 48 mm
Mounting:
Front installation
Fastening:
Clamping frame
Weight:
Version AC: ca. 260 g
Version DC: ca. 140 g
Type of connection:
Plug-in screw terminals
Grid 5.08 mm
Core cross-section:
Max. 1.5 mm2
Housing material:
Polycarbonate black, UL 94V-0
Membrane material:
Polyester
Ambient temperature:
0...+50 °C
Storage temperature:
-20...+70 °C
Relative humudity:
Max. rel. humidity 80 %, at 25 °C, non-condensing
Protection:
Front IP 65 to DIN 40050
General rating:
EN 61010 Part 1
- Protection class II
- Overvoltage protection categ. II
- Contamination factor 2
Interference immunity:
EN 50082-2
Emitted interference:
EN 50081-1
Supply voltage:
Choice of two voltages via switch on device. When supplied, always higher voltage adjusted.
115 ±10 % / 230 VAC +6 / -10 % (50 / 60 Hz)
24 / 48 VAC ±10 % (50 / 60 Hz)
24 VDC ±10 %, 5 % residual ripple
Power consumption:
7 VA, 4.5 W
Sensor supply:
12...26 VDC / 50 mA
Signal inputs:
Optocoupler inputs
Count input A / B
- control current 9...16 mA
- breaking current < 0.5 mA
- input resistance 1.65 kOhm
Reset input
- control current 5...8 mA
- breaking current < 0.5 mA
- input resistance 3.3 kOhm
Can be coded asPNP / NPN via wirejumper to screw terminal
Input counting rate:
Adjustable to 15 Hz, 10 kHz via DIP
Signal outputs:
Can be programmed as momentary or permanent signals; Impulse time can be programmed 0.01...9.99 s, tolerance: +0.01s
Relay signal outputs:
1 float. relay as changeover contact
Internal spark suppression
Relay can be programmed in inverted output logic
Max. switching volt. 250 VAC/110VDC
Max. switching power 1 A
Max. switching capacity 150 VA/30W
Electronic output:
NPN switching transistor
- Max. switching voltage +35 V
- Max. switching power 50 mA
PNP switching transistor
- Max. switching voltage 12...24 VDC
With AC operation, depending on load
- Max. switching power 50 mA, for DC operation
- Max. switching power 10 mA, for AC operation
Data storage:
> 10 years via EEPROM
Operation modes:
To be programmed as adding or subtracting via DIP-switch
Counting mode of signal inputs A / B:
UP / DOWN, A - B, A + B, A 90° B x1, A 90° B x2, A 90° B x4
Ambient temperature:
0...+50 °C
Storage temperature:
-20...+70 °C
Relative humudity:
Max. rel. humidity 80 %, at 25 °C, non-condensing
Protection:
Front IP 65 to DIN 40050
General rating:
EN 61010 Part 1
- Protection class II
- Overvoltage protection categ. II
- Contamination factor 2
Interference immunity:
EN 50082-2
Emitted interference:
EN 50081-1

Model Selector


Downloads


Buy Now

Products


Product name
Price
Quantity
NE210.011AXA1 IVO Electronic Preset counter 24/48 VAC
€ 257,00

NE210.012AXA1 IVO Electronic Preset counter 85-265 VAC
€ 257,00

NE210.013AXA1 IVO Electronic Preset counter 24 VDC
€ 238,00

NE210.021AXA1 IVO Electronic Preset counter 24/48 VAC
€ 257,00

NE210.022AXA1 IVO Electronic Preset counter 85-265 VAC
€ 257,00

NE210.023AXA1 IVO Electronic Preset counter 24 VDC
€ 238,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request

If the desired model is not shown in the list of prices, price is on request
