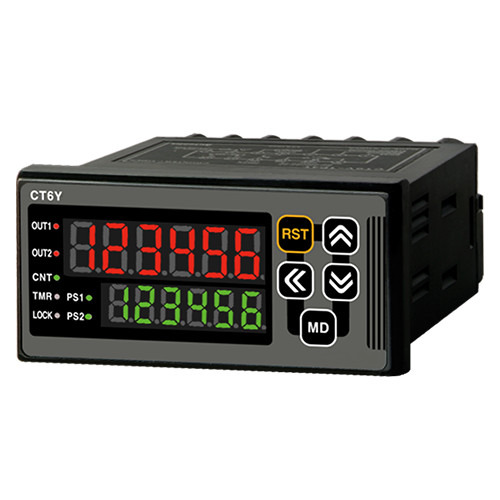

CT6Y Counter/Timer


Programmable Counter/Timer with operation method count up & count down.

  • Display method : 6-digit 7-segment LED
  • Operation method : Counter: Count up, Count down, Count up/down
    Timer: Count up, Count down
  • Terminal : Terminal block
  • Output Operation : SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
  • Power supply : 100-240VAC~ 50/60Hz
  • Protection structure : IP65(front panel)

Dimensions
Dimensions-CT6Y


  • Width: 72mm
  • Height: 36mm

Specifications
Display method6-digit 7-segment LED
Operation methodCounter: Count up, Count down, Count up/down
Timer: Count up, Count down
TerminalTerminal block
Output OperationSIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
Power supply100-240VAC~ 50/60Hz
Time operationPOWER ON START SIGNAL ON START
External Power SupplyMax. 12VDC ±10%, 100mA
Signal Input MethodVoltage input(PNP), No-voltage input(NPN)
Max. Counting Speed1, 30, 1k, 5k, 10k [cps]
Min. signal Width1ms/20ms
Memory ProtectionApprox. 10 years
Setting range0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
Control output_Type1-stage preset
Protection structureIP65(front panel)
Counter_Counting range-99999 to 999999
Counter_Min. input signal widthRESET: Selectable 1ms/20ms
Timer_Min. input signal widthINA, INH, RESET: Selectable 1ms/20ms
Environment_Ambient temperature-10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
WeightApprox. 140g
Connection MethodRS485
Digit size top / bottom10 mm /7 mm
Relay life cycle mechanical
electrical
Min. 10,000,000 operations
Min. 100,000 operations
Counter ScaleDecimal point up to fifth digit

Ordering information
CT6 ordering information
