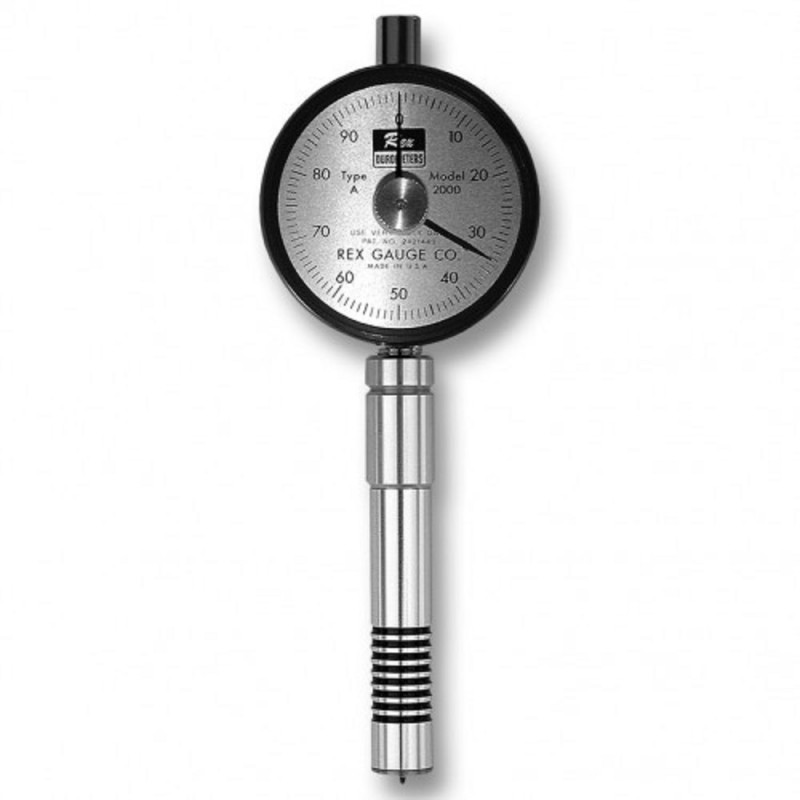

RX-2000 Max-Hand Durometer


Made in the USAThe RX-2000 durometer is the latest innovation for the testing of specimens with creep.
The RX-2000 has a max-hand and an active hand for observing the creep characteristics of a specimen.
What makes the RX-2000 unique is the magnetic-drag maximum reset mechanism. The user simply rotates the reset knob on the front of the gauge to clear the previous reading. The simplicity of the reset mechanism ensures a lifetime of use, and makes the RX-2000 the most affordable durometer for testing specimens with creep.

All RX-2000 models are supplied with a NIST traceable calibration certificate.



Features
  • Includes NIST traceable Calibration Certificate
  • Holds Reading Until Reset
  • Reads Maximum and Creep
  • Conforms to ASTM D-2240
  • One year warranty
  • Custom Made Carrying Case
  • Cost Effective, Hand Operated

Related Products

RX-TBK-A Type A Durometer Test Block Kit


  • Enables the user to perform a quick check for proper durometer operation

More details

RX-TBK-A Type A Durometer Test Block Kit

RX-BF 'Big Foot' Durometer Foot Adapter


  • The Big Foot increases the diameter of the foot from 1/2" to 1 3/8" diameter

More details

RX-BF 'Big Foot' Durometer Foot Adapter

RX-CLW Constant Load Weight for Types A, B, O, OO & OOO


  • The Constant Load Weight for gauges with an 822g springload (types A, B, O) slides onto the lower barrel of the gauge, gives it a wider foot, and raises the mass of the gauge to the suggested 1kg

More details

RX-CLW Constant Load Weight for Types A, B, O, OO & OOO

RX-ORF O-Ring Fixturing Set


  • Measures O-Rings 1/16" to 1/4"
  • 5 standard English sized fixtures and set plug included
  • Stainless steel construction

More details

RX-ORF O-Ring Fixturing Set

Cic-Duro Durometer Calibration


  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details

Cic-Duro Durometer Calibration

RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers


  • Special attachment gives you two gauges in one model.
    With attached, the gauge confirms to DIN 55305 norm.
    When taken off, the gauge is conform ASTM D2240.

More details

RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers

Durometer Test Stands

durometer test stands We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.

Dimensions
Dimensions RX-2000


Complete Kit
The RX-2000 is supplied as a complete kit including the durometer & instruction manual in a foam-fitted metal carrying case.

Specifications
Measuring Range0 - 100 units
Accuracy±1 durometer unit (A,B,C,D,E,O,DO)
Dimensions2.25" x 6.125"H
Weight6 oz.
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

Buy Now
Products

Product name
Price
Quantity
RX-2000-A - RX-2000 Type A Durometer
€ 505,00
RX-2000-B - RX-2000 Type B Durometer
€ 553,00
RX-2000-C - RX-2000 Type C Durometer
€ 553,00
RX-2000-D - RX-2000 Type D Durometer
€ 505,00
RX-2000-DO - RX-2000 Type DO Durometer
€ 553,00
RX-2000-O - RX-2000 Type O Durometer
€ 553,00

Accessories

Product name
Price
Quantity
RX-DIN-FA - ASTM to DIN 53505 foot adapter
€ 137,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
