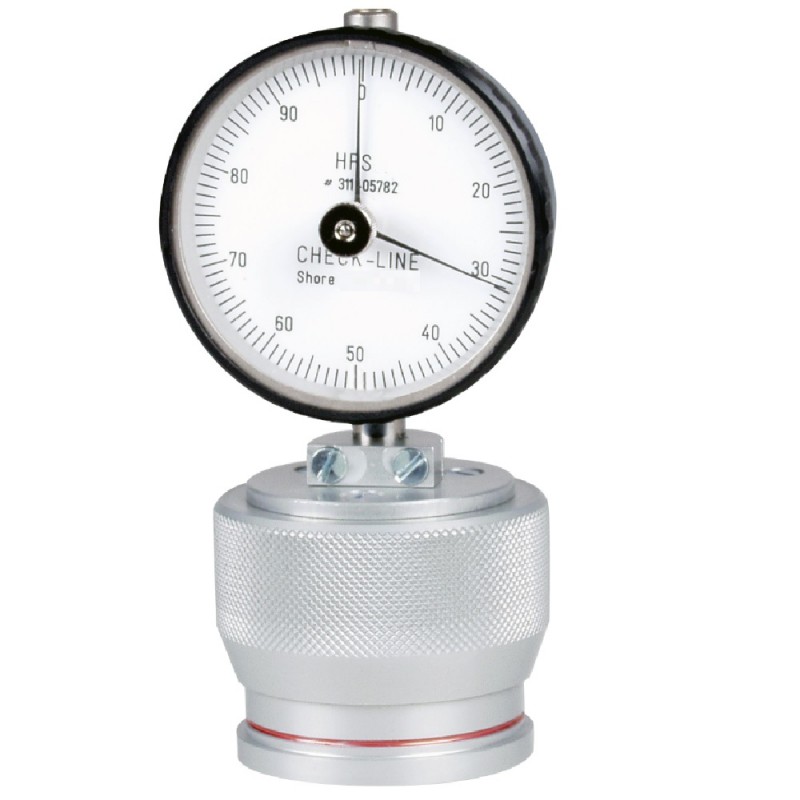

HPSAO Shore Durometer


Made in GermanyDurometer according ISO 7619-1 for determining the Shore surface hardness of foams, steering wheels and inner linings of motor vehicles with hardness < 20 Shore A


Features
  • The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators
  • Working face 44.5 mm Ø
  • Application range < 20 Shore A units
  • Flat bottom prevents tilting and improves the measuring accuracy
  • Adjustable Min./Max. indicator marks the highlight working range of the hardness tester
  • High repeatability

Operation
For measuring the hardness, the spring-loaded outer ring of the housing is pressed downwards until the edge of the ring meets the colored marking on the housing. This ensures a constant pressure and prevents measuring errors.

General:
The principle used to measure shore hardness is based on measuring the resistance force of the penetration of a pin into the test material under a known spring load. The amount of penetration is converted to hardness reading on a scale with 100 shore units.
As the depth of indentation is max. 2.5 mm the test material has to have a minimum thickness of 6 mm. If thickness is less stack some samples til you reach the required thickness.


Dimensions
Dimensions Durometers HPSAO


Related Products

PTS-HP Durometer Test Stand


  • Mechanical lever-operated test stand for use when precise positioning is required on the test sample (i.e. o-ring, etc.).
  • Operation is as simple as rotating lever until shell on durometer reaches red line.

More details

PTS-HP Durometer Test Stand

Cic-Duro Durometer Calibration


  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details

Cic-Duro Durometer Calibration

Complete Kit
The HP series durometer is supplied as a complete kit with:
  • Durometer
  • User Manual
  • Foam-fitted carrying case.
A calibration certificate is optional.

Specifications
Indentor
Ball, 5 mm diameter (R=2.5mm)
Depth of indentation
0 - 2.5 mm
Typical applications
Foams, steering wheels and inner linings of motor vehicles
Accuracy
± 1 hardness unit
Application range
< 20 Shore A
Standard
ISO 7619-1
Measuring spring force
0.55 - 8.065 N
Test pressure*
Approx. 12.5 N
Scale diameter
54 mm
Display range
0 - 100 Shore AO units
Working face
44.5 mm Ø = 15.5 cm²
Base plate
44.5 mm Ø
Weight, net (gross)
Approx. 300 g (500 g)
Dimensions
50 x 60 x 110 mm (LxWxH)
* Spring load of outer ring to create constant pressure
